Product Summary
The MPSA45 is a epitaxial planar npn transistor (high voltage).
Parametrics
MPSA45 absolute maximum ratings: (1)Collector-Base Voltage, VCBO: 400V; (2)Collector-Emitter Voltage, VCEO: 350V; (3)Emitter-Base Voltage, VEBO: 6 V; (4)Collector Current IC: 300 mA; (5)Collector Power Dissipation, PC: 625 mW; (6)Junction Temperature Tj: 150℃; (7)Storage Temperature Range, Tstg: -55 to 150℃.
Features
MPSA45 features: (1)High Breakdown Voltage; (2)Collector Power Dissipation: PC=625mW.

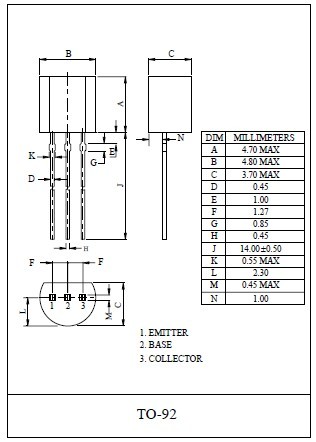

Diagrams
 |
