Product Summary
The MPSA14 is a Darlington Transistor.
Parametrics
MPSA14 absolute maximum ratings: (1)Collector-Emitter Voltage, VCES: 30 Vdc; (2)Collector-Base Voltage, VCBO: 30 Vdc; (3)Emitter-Base Voltage, VEBO: 10 Vdc; (4)Collector Current - Continuous, IC: 500 mAdc; (5)Total Device Dissipation @ TA = 25℃, PD: 625mW; 5.0mW/℃ when Derate above 25℃; (6)Total Device Dissipation @ TC = 25℃, PD: 1.5W; 12mW/℃ when Derate above 25℃; (7)Operating and Storage Junction Temperature Range, TJ, Tstg: -55 to +150℃.
Features
MPSA14 features: (1)Pb-Free Packages are Available.

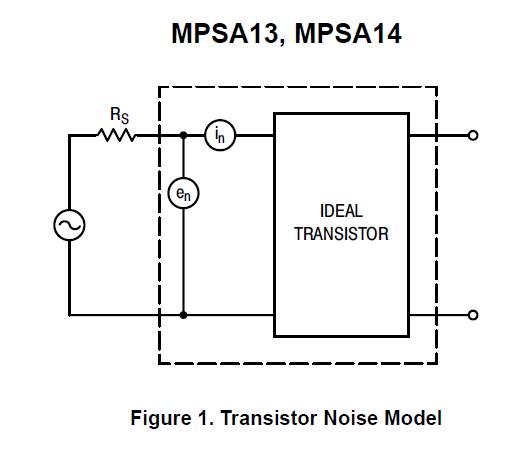

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MPSA14 |
Central Semiconductor |
Transistors Darlington NPN GP Darl |
Data Sheet |
|
|
||||||||||||
|
MPSA14_D26Z |
Fairchild Semiconductor |
Transistors Darlington NPN Transistor Darlington |
Data Sheet |
|
|
||||||||||||
|
MPSA14_D26Z_Q |
Fairchild Semiconductor |
Transistors Darlington NPN Transistor Darlington |
Data Sheet |
Negotiable |
|
||||||||||||
|
MPSA14_D27Z |
Fairchild Semiconductor |
Transistors Darlington NPN Darlington |
Data Sheet |
Negotiable |
|
||||||||||||
|
MPSA14_Q |
Fairchild Semiconductor |
Transistors Darlington NPN Transistor Darlington |
Data Sheet |
Negotiable |
|
||||||||||||
 |
MPSA14-A |
Micro Commercial Components (MCC) |
Transistors Darlington 500mA 30V |
Data Sheet |
Negotiable |
|
||||||||||||
|
MPSA14DI |
Diodes Inc |
TRANSISTOR 30V NPN DARL TO92-3 |
Data Sheet |
|
|
||||||||||||
|
MPSA14G |
ON Semiconductor |
Transistors Darlington 500mA 30V NPN |
Data Sheet |
|
|
||||||||||||
