Product Summary

The MMBT5551 is a NPN General Purpose Amplifier. This device is designed for general purpose high voltage amplifiers and gas discharge display driving. Sourced from Process 16.

Parametrics

MMBT5551 absolute maximum ratings: (1)VCEO, Collector-Emitter Voltage: 160 V; (2)VCBO, Collector-Base Voltage: 180 V; (3)VEBO, Emitter-Base Voltage: 6.0 V; (4)IC, Collector Current - Continuous: 600 mA; (5)TJ, Tstg, Operating and Storage Junction Temperature Range: -55 to +150℃.

Features

MMBT5551 features: (1)PD, Total Device Dissipation: 625mW; Derate above 25℃: 5.0mW/℃; (2)RθJC, Thermal Resistance, Junction to Case: 83.3℃/W; (3)RθJA, Thermal Resistance, Junction to Ambient: 200℃/W.

Diagrams

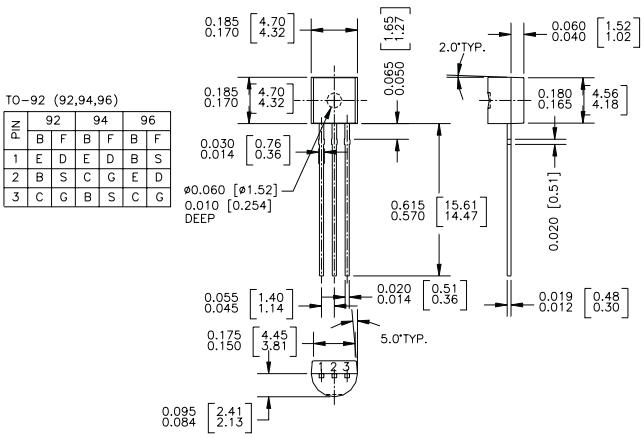

MMBT5551 dimension
