MM74HCT05SJX

Hex Inverter, -0.5 to +7.0V, sop, Open drain, silicon-gate CMOS technology

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~2.00

PartNumber:: MM74HCT05SJX

Brand:: Fairchild Semiconductor - Fairchild | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-22

From Other Seller

Part Number:MM74HCT05SJX
US $0.10 - 2.00
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
2DI240A-055

US $70.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MM74HCT05SJX is a Hex Inverter. It is fabricated by using advanced silicon-gate CMOS technology, which provides the inherent benefits of CMOS—low quiescent power and wide power supply range. The device is also input and output characteristic and pinout compatible with standard DM74LS logic families. The MM74HCT05SJX open drain Hex Inverter requires the addition of an external resistor to perform a wire-NOR function. All inputs of MM74HCT05SJX are protected from static discharge damage by internal diodes to VCC and ground.

Parametrics

MM74HCT05SJX absolute maximum ratings: (1)Supply Voltage (VCC): -0.5 to +7.0V; (2)DC Input Voltage (VIN): -1.5 to VCC +1.5V; (3)DC Output Voltage (VOUT): -0.5 to +7.0V; (4)Clamp Diode Current (IIK, IOK): ± 20 mA; (5)DC Output Current, per pin (IOUT): + 25 mA; (6)DC VCC or GND Current, per pin (ICC): ± 50 mA; (7)Storage Temperature Range (TSTG): -65℃ to +150℃; (8)Power Dissipation (PD): 600 mW; (9)Lead Temperature (TL) (Soldering 10 seconds): 260℃.

Features

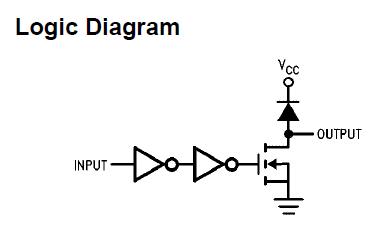

MM74HCT05SJX features: (1)Open drain for wire-NOR function; (2)LS-TTL pinout and threshold compatible; (3)Fanout of 10 LS-TTL loads; (4)Typical propagation delays: tPZL (with 1 kΩ resistor) 10 ns, tPLZ (with 1 kΩ resistor) 8 ns.
