Product Summary
The MIC29150-3.3BU is a high current, high accuracy, low-dropout voltage regulator. Using Micrel’s proprietary Super Beta PNP process with a PNP pass element, these regulators feature 300mV to 370mV (full load) dropout voltages and very low ground current. Designed for high current loads, these devices of the MIC29150-3.3BU also find applications in lower current, extremely low dropout-critical systems, where their tiny dropout voltage and ground current values are important attributes. The applications of the MIC29150-3.3BU include: Battery Powered Equipment, High-Efficiency “Green” Computer Systems, Automotive Electronics, High-Efficiency Linear Power Supplies, High-Efficiency Post-Regulator For Switching Supply.
Parametrics
MIC29150-3.3BU absolute maximum ratings: (1)Power Dissipation: Internally Limited; (2)Lead Temperature (Soldering, 5 seconds): 260℃; (3)Storage Temperature Range: –65℃ to +150℃; (4)Input Supply Voltage (Note 1):–20V to +60V; (5)Operating Junction Temperature: –40℃ to +125℃; (6)Maximum Operating Input Voltage: 26V.
Features
MIC29150-3.3BU features: (1)High Current Capability: 1.5A; (2)Low-Dropout Voltage: 350mV at Full Load; (3)Low Ground Current; (4)Accurate 1% Guaranteed Tolerance; (5)Extremely Fast Transient Response; (6)Reverse-battery and “load Dump” Protection; (7)Zero-Current Shutdown Mode (5-Pin versions); (8)Error Flag Signals Output Out-of-Regulation (5-Pin versions); (9)Also Characterized For Smaller Loads With Industry Leading Performance Specifications; (10)Fixed Voltage and Adjustable Versions.

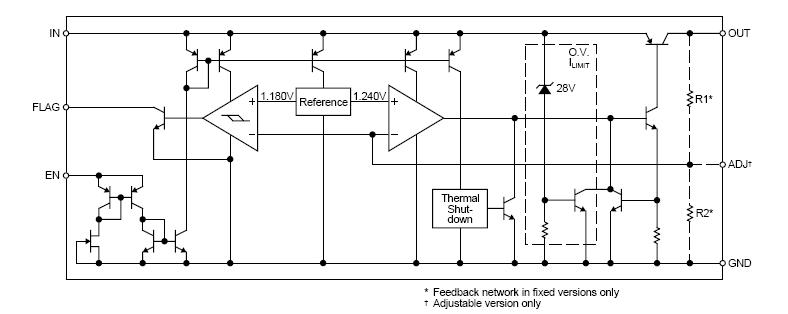

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

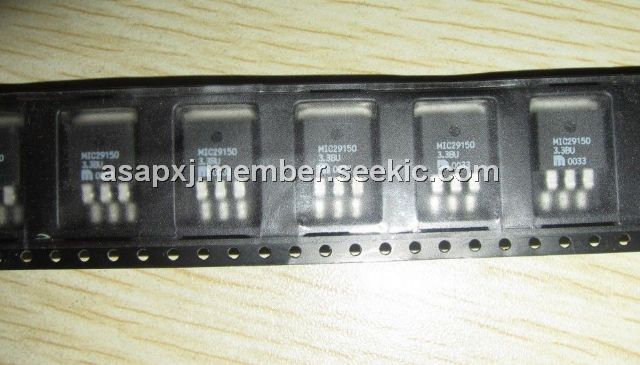

 MIC29150-3.3BU |
|
IC REG LDO 3.3V 1.5A TO263 |
Data Sheet |
Negotiable |
|
||||
|
MIC29150-3.3BU TR |
|
IC REG LDO 3.3V 1.5A TO-263 |
Data Sheet |
Negotiable |
|
||||
