Product Summary

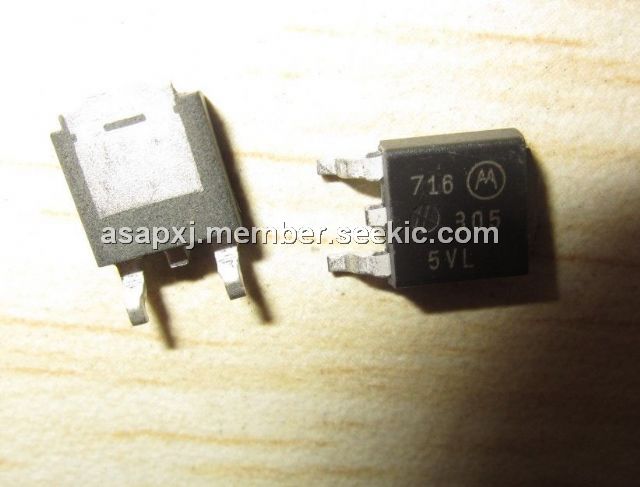

The MCR716T is a reverse blocking thyristor. The MCR716T is designed for high volume, low cost, industrial and consumer applications such as motor control, process control, temperature, light and speed control.
Parametrics
MCR716T absolute maximum ratings: (1)Peak Repetitive Off-State Voltage, VDRM, VRRM: 400V; (2)On-State RMS Current (180° Conduction Angles; TC = 90℃), IT(RMS): 4.0A; (3)Average On-State Current (180° Conduction Angles; TC = 90℃), IT(AV): 2.6A; (4)Peak Non-Repetitive Surge Current, ITSM: 25A; (5)Circuit Fusing Consideration (t = 8.3 msec), I2t: 2.6A2sec; (6)Forward Peak Gate Power, PGM: 0.5W; (7)Forward Average Gate Power, PG(AV): 0.1W; (8)Forward Peak Gate Current, IGM: 0.2A; (9)Operating Junction Temperature Range, TJ: -40 to +110℃; (10)Storage Temperature Range, Tstg: -40 to +150℃.
Features
MCR716T features: (1)Small Size; (2)Passivated Die for Reliability and Uniformity; (3)Low Level Triggering and Holding Characteristics; (4)Surface Mount Lead Form Case 369C; (5)Epoxy Meets UL 94 V@0 at 0.125 in; (6)ESD Ratings: Human Body Model, 3B＞8000 V Machine Model, C＞400 V; (7)Pb-Free Packages are Available.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MCR716T4 |
ON Semiconductor |
SCRs 400V 4A |
Data Sheet |
Negotiable |
|
||||||||||||
|
MCR716T4G |
ON Semiconductor |
SCRs 400V 4A |
Data Sheet |
|
|
||||||||||||
