Product Summary
The MC9S08QD4MSC is a low-cost, high-performance 8-bit microcontroller unit (MCU). It uses the enhanced HCS08 core and is available with a variety of modules, memory sizes, memory types, and package types.
Parametrics
MC9S08QD4MSC absolute maximum ratings: (1)Supply voltage: –0.3 to +5.8 V; (2)Maximum current into VDD: 120 mA; (3)Digital input voltage: –0.3 to VDD + 0.3 V; (4)Instantaneous maximum current Single pin limit (applies to all port pins): ± 25 mA; (5)Storage temperature range: –55 to 150 ℃.
Features
MC9S08QD4MSC features: (1)16 MHz HCS08 CPU (central processor unit); (2)HC08 instruction set with added BGND instruction; (3)Background debugging system; (4)Breakpoint capability to allow single breakpoint setting during in-circuit debugging (plus two more breakpoints in on-chip debug module); (5)Support for up to 32 interrupt/reset sources.

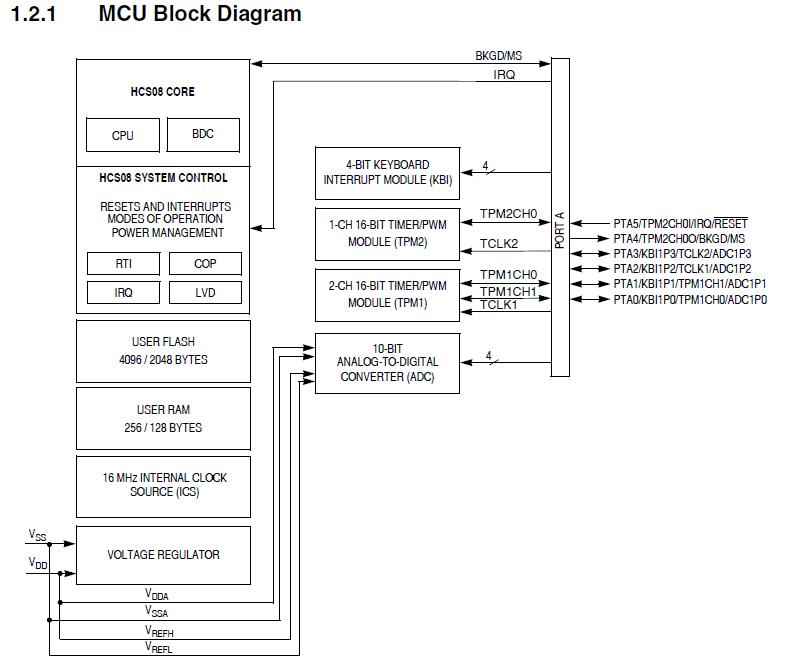

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC9S08QD4MSC |
Freescale Semiconductor |
8-bit Microcontrollers (MCU) 9S08QD4 SERIES |
Data Sheet |
|
|
||||||||||||
