Product Summary

The MC908MR32CFUE is a member of the low-cost, high-performance M68HC08 Family of 8-bit microcontroller unit (MCU) with embedded EEPROM for user data storage. The MC908MR32CFUE uses the enhanced M68HC08 central processor unit (CPU08) and are available with a variety of modules, memory sizes and types, and package types.

Parametrics

MC908MR32CFUE absolute maximum ratings: (1)Supply voltage VDD: -0.3 to + 6.0 V; (2)Input voltage VIn: VSS - 0.3 to VDD + 0.3 V; (3)Maximum current per pin excluding VDD, VSS, and PTD0-PTD7, I: ± 15 mA; (4)Maximum current for pins PTD0-PTD7: IPTD0-PTD7: ± 25 mA; (5)Maximum current into VDD Imvdd: 100 mA; (6)Maximum current out of VSS Imvss: 100 mA; (7)Storage temperature Tstg: -55 to +150 ℃.

Features

MC908MR32CFUE features: (1)High-performance M68HC08 architecture; (2)Fully upward-compatible object code with M6805, M146805, and M68HC05 Families; (3)Memory map and pin functions compatible with MC68HC08AB32 and MC68HC08AB16; (4)8-MHz internal bus frequency; (5)32K-bytes user program FLASH memory with security feature; (6)512 bytes of on-chip EEPROM with security feature; (7)1K-byte of on-chip RAM; (8)Clock generator module (CGM); (9)Two 16-bit, 4-channel timer interface modules (TIMA and TIMB) with selectable input capture, output compare, and PWM capability on each channel; (10)Programmable interrupt timer (PIT); (11)Serial peripheral interface module (SPI); (12)Serial communications interface module (SCI); (13)8-channel. 8-bit analog-to-digital converter (ADC); (14)Low-power design (fully static with STOP and WAIT modes); (15)Master reset pin and power-on reset.

Diagrams

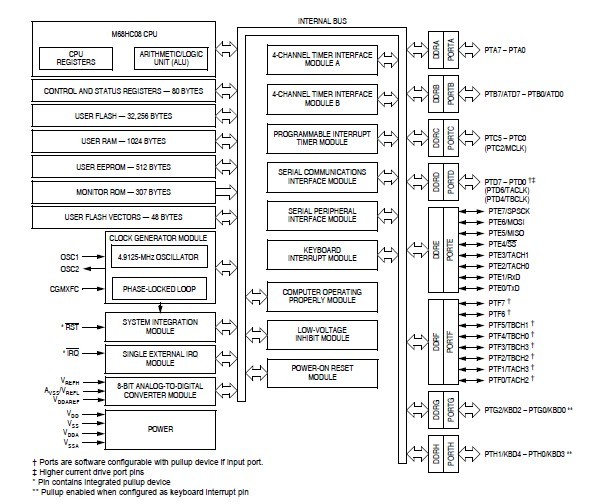

MC908MR32CFUE pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MC908MR32CFUE
MC908MR32CFUE
Freescale Semiconductor
8-bit Microcontrollers (MCU) 8 BIT MCU W/32K FLASH
Data Sheet
0-1: $7.26
1-25: $6.71
25-100: $5.63
100-500: $5.26
