Product Summary
The MC74HC1G04DF is a high speed CMOS inverter fabricated with silicon gate CMOS technology. The internal circuit is composed of multiple stages, including a buffer output which provides high noise immunity and stable output. The MC74HC1G04DF output drive current is 1/2 compared to MC74HC series.
Parametrics
MC74HC1G04DF absolute maximum ratings: (1)DC Supply Voltage: -0.5 to 7.0 V; (2)DC Input Voltage: -0.5 to VCC 0.5 V; (3)DC Output Voltage: -0.5 to VCC 0.5 V; (4)DC Input Diode Current: ±20 mA; (5)DC Output Diode Current: ±20 mA; (6)DC Output Sink Current:±12.5 mA; (7)DC Supply Current per Supply Pin: ±25 mA; (8)Storage Temperature Range: -65 to 150 ℃; (9)Lead Temperature, 1 mm from Case for 10 Seconds: 260 ℃; (10)Junction Temperature Under Bias: 150 ℃.
Features
MC74HC1G04DF features: (1)High Speed: tPD = 7 ns (Typ) at VCC = 5 V; (2)Low Power Dissipation: ICC = 1 μA (Max) at TA = 25℃; (3)High Noise Immunity; (4)Balanced Propagation Delays (tpLH = tpHL); (5)Symmetrical Output Impedance (IOH = IOL = 2 mA); (6)Chip Complexity: FET = 105; (7)Pb?Free Packages are Available.

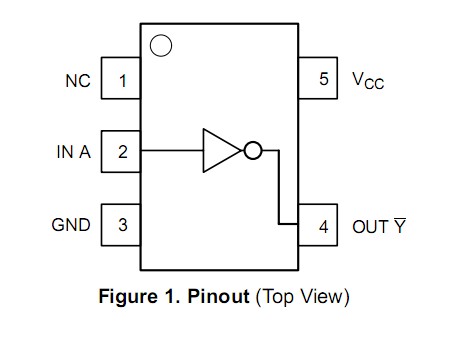

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC74HC1G04DFT1 |
ON Semiconductor |
Inverters 2-6V Single CMOS |
Data Sheet |
Negotiable |
|
||||||||||||
|
MC74HC1G04DFT1G |
ON Semiconductor |
Inverters 2-6V Single CMOS |
Data Sheet |
|
|
||||||||||||
|
MC74HC1G04DFT2G |
ON Semiconductor |
Inverters 2-6V Single CMOS |
Data Sheet |
|
|
||||||||||||
|
MC74HC1G04DFT2 |
ON Semiconductor |
Inverters 2-6V Single CMOS |
Data Sheet |
Negotiable |
|
||||||||||||
