Product Summary
The MC6821P is a peripheral interface adapter(PIA), provides the universal means of interfacing peripheral equipment to the M6800 family of microprocessors. The MC6821P is capable of interfacing the MPU to peripherals through two 8-bit bidirectional peripheral data buses and four control lines. No external logic is required for interfacing to most peripheral devices.
Parametrics
MC6821P absolute maximum ratings: (1)supply voltage: -0.3 to +7.0V; (2)input voltage: -0.3 to +7.0V; (3)operating temperature range: -40 to +85℃; (4)storage temperature range: -55 to +150℃.
Features
MC6821P features: (1)8-bit bidirectional data bus for communication with the MPU; (2)two bidirectional 8-bit buses for interface to peripherals; (3)two programmable control registers; (4)two programmable data direction registers; (5)four individually-controlled interrupt input lines; two usable as peripheral control outputs; (6)handshake control logic for input and output peripheral operation; (7)high-impedance three-state and direct transistor drive peripheral lines; (8)program controlled interrupt and interrupt disable capability; (9)CMOS drive capability on side A peripheral lines; (10)two TTL drive capability on all A and B side buffers; (11)TTL-compatible; (12)static operation.

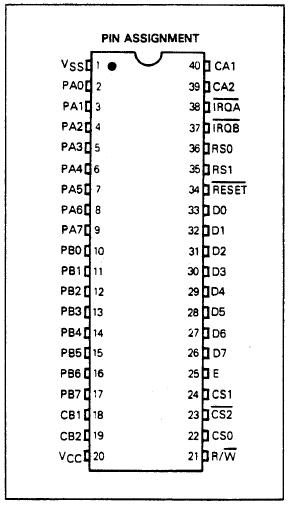

Diagrams
 |
