Product Summary
The MC33269DTRK-5.0 is a low dropout, medium current, fixed and adjustable, positive voltage regulator. It is specifically designed for use in low input voltage applications. The MC33269DTRK-5.0 can offer the circuit designer an economical solution for precision voltage regulation, while keeping power losses to a minimum. The MC33269DTRK-5.0 consists of a 1.0 V dropout composite PNP-NPN pass transistor, current limiting, and thermal shutdown.
Parametrics
The MC33269DTRK-5.0 is a low dropout, medium current, fixed and adjustable, positive voltage regulator. It is specifically designed for use in low input voltage applications. The MC33269DTRK-5.0 can offer the circuit designer an economical solution for precision voltage regulation, while keeping power losses to a minimum. The MC33269DTRK-5.0 consists of a 1.0 V dropout composite PNP-NPN pass transistor, current limiting, and thermal shutdown.
Features
MC33269DTRK-5.0 features: (1)3.3 V, 5.0 V, 12 V and Adjustable Versions. 2.85 V version available as MC34268; (2)Space Saving DPAK, SOP-8 and SOT-223 Power Packages; (3)1.0 V Dropout; (4)Output Current in Excess of 800 mA; (5)Thermal Protection; (6)Short Circuit Protection; (7)Output Trimmed to 1.0% Tolerance; (8)Pb-Free Package is Available.

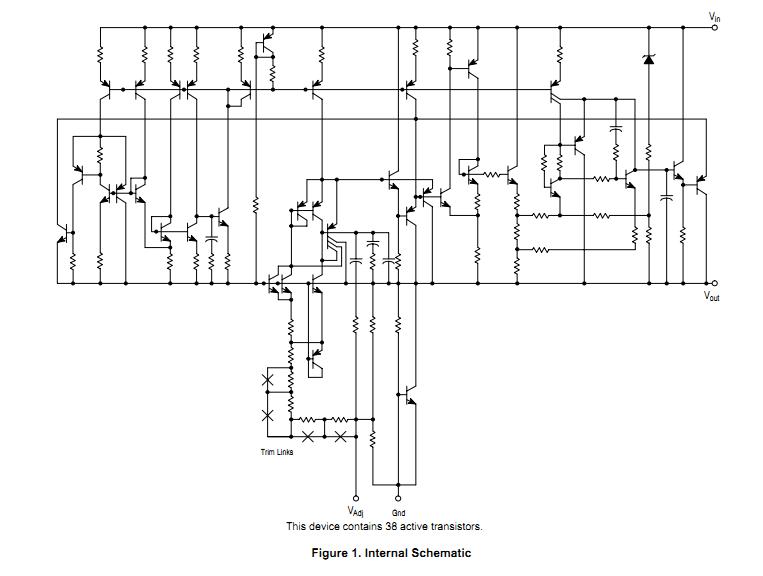

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC33269DTRK-5.0 |
ON Semiconductor |
Low Dropout (LDO) Regulators 5.0V ADJ 800mA |
Data Sheet |
Negotiable |
|
||||||||||||
|
MC33269DTRK-5.0G |
ON Semiconductor |
Low Dropout (LDO) Regulators 5.0V ADJ 800mA |
Data Sheet |
|
|
||||||||||||
