MC33164P5

Product Summary

The MC33164P5 is a micropower undervoltage sensing circuit. The MC33164P5 series are undervoltage sensing circuits specifically designed for use as reset controllers in portable microprocessor based systems where extended battery life is required. These devices offer the designer an economical solution for low voltage detection with a single external resistor. The MC33164P5 series features a bandgap reference, a comparator with precise thresholds and built.in hysteresis to prevent erratic reset operation, an open collector reset output capable of sinking in excess of 6.0 mA, and guaranteed operation down to 1.0 V input with extremely low standby current. The MC devices are packaged in 3.pin TO.226AA, micro size TSOP.5, 8.pin SOIC.8 and Micro8 surface mount packages. The NCV device is packaged in SOIC.8. The applications of the MC33164P5 include direct monitoring of the 3.0 V or 5.0 V MPU/logic power supply used in appliance, automotive, consumer, and industrial equipment.

Parametrics

MC33164P5 absolute maximum ratings: (1)Power Input Supply Voltage Vin: -1.0V to 12V; (2)Reset Output Voltage VO: -1.0V to 12V; (3)Reset Output Sink Current ISink Internally Limited mA; (4)Clamp Diode Forward Current, Reset to Input Pin IF: 100 mA; (5)Power Dissipation and Thermal Characteristics; (6)P Suffix, Plastic Package Maximum Power Dissipation @ TA =25℃ Thermal Resistance, Junction to Air: RθJA:178℃/W; (7)D Suffix, Plastic Package Maximum Power Dissipation @ TA =25℃ Thermal Resistance, Junction to Air: RθJA:178℃/W; (8)DM Suffix, Plastic Package Maximum Power Dissipation @ TA =25℃; (9)Thermal Resistance, Junction to Air: RθJA:240℃/W; (10)Operating Junction Temperature TJ: +150 ℃; (11)Operating Ambient Temperature Range MC34164 Series: 0℃ to 70℃; (12)MC33164 Series, NCV33164:-40℃ to 125℃; (13)Storage Temperature Range Tstg: -65℃ to +150℃; (14)Electrostatic Discharge Sensitivity (ESD), Human Body Model (HBM):4000V, Machine Model (MM):200V.

Features

MC33164P5 features: (1)Temperature Compensated Reference; (2)Monitors 3.0 V (MC34164-3) or 5.0 V (MC34164-5) Power Supplies; (3)Precise Comparator Thresholds Guaranteed Over Temperature; (4)Comparator Hysteresis Prevents Erratic Reset; (5)Reset Output Capable of Sinking in Excess of 6.0 mA; (6)Internal Clamp Diode for Discharging Delay Capacitor; (7)Guaranteed Reset Operation With 1.0 V Input; (8)Extremely Low Standby Current: As Low as 9.0 μA; (9)Economical TO-226AA, TSOP-5, SOIC-8 and Micro8 Surface Mount Packages; (10)NCV Prefix for Automotive and Other Applications Requiring Site and Control Changes; (11)Pb-Free Packages are Available.

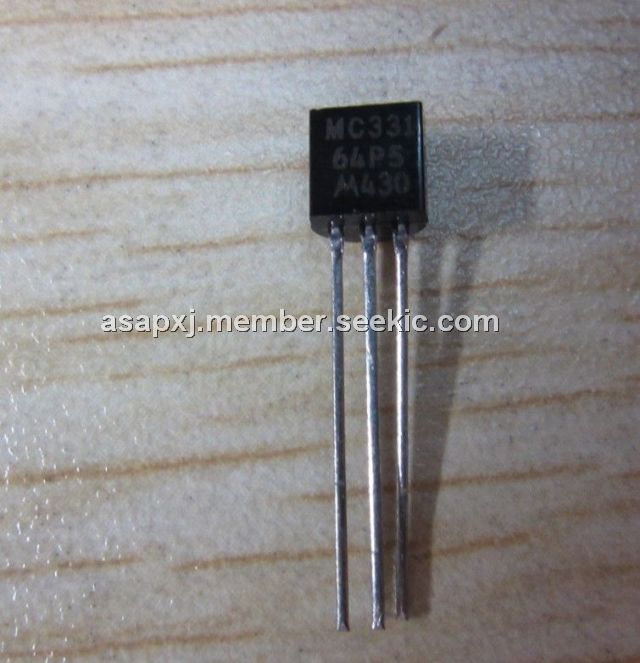

Diagrams
