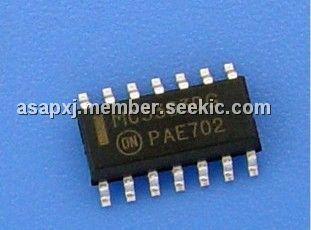

MC3303DR2G

quad operational amplifier, SOP, 36 Vdc, 500 nA, Short Circuit Protected Outputs

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~0.50

PartNumber:: MC3303DR2G

Brand:: ON Semiconductor - ON | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-22

From Other Seller

Part Number:MC3303DR2G
US $0.10 - 0.50
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
AT45DB161B-TI

US $0.90 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MC3303DR2G is a low cost, quad operational amplifier with true differential inputs. The device has electrical characteristics similar to the popular MC1741C. However, the MC3303DR2G has several distinct advantages over standard operational amplifier types in single supply applications. The quad amplifier can operate at supply voltages as low as 3.0 V or as high as 36 V with quiescent currents about one third of those associated with the MC1741C (on a per amplifier basis). The common mode input range includes the negative supply, thereby eliminating the necessity for external biasing components in many applications. The output voltage range of MC3303DR2G also includes the negative power supply voltage.

Parametrics

MC3303DR2G absolute maximum ratings: (1)Power Supply Voltages: Single Supply: 36 Vdc, Split Supplies: ±18 Vdc; (2)Input Differential Voltage Range: ±36 Vdc; (3)Input Common Mode Voltage Range: ±18 Vdc; (4)Storage Temperature Range: -55 to +125 ℃; (5)Operating Ambient Temperature Range: -40 to +85 ℃; (6)Junction Temperature: 150 ℃.

Features

MC3303DR2G features: (1)Short Circuit Protected Outputs; (2)Class AB Output Stage for Minimal Crossover Distortion; (3)True Differential Input Stage; (4)Single Supply Operation: 3.0 V to 36 V; (5)Split Supply Operation: ±1.5 V to ±18 V; (6)Low Input Bias Currents: 500 nA Max; (7)Four Amplifiers Per Package; (8)Internally Compensated; (9)Similar Performance to Popular MC1741C; (10)Industry Standard Pin-outs; (11)ESD Diodes Added for Increased Ruggedness; (12)Pb-Free Packages are Available.
