Product Summary

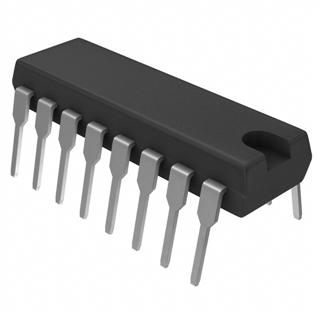

The MC1413PG is a high voltage, high current darlington transistor array. The seven NPN Darlington connected transistors in the array is well suited for driving lamps, relays, or printer hammers in a variety of industrial and consumer applications. Its high breakdown voltage and internal suppression diodes insure freedom from problems associated with inductive loads. Peak inrush currents to 500 mA permit the MC1413PG to drive incandescent lamps. The MC1413PG, B with a 2.7 kΩ series input resistor is well suited for systems utilizing a 5.0 V TTL or CMOS Logic.
Parametrics
MC1413PG absolute maximum ratings: (1)Output Voltage, VO: 50 V; (2)Input Voltage, VI: 30 V; (3)Collector Current - Continuous, IC: 500 mA; (4)Base Current - Continuous, IB: 25 mA; (5)Operating Ambient Temperature Range, TA: -20 to +85℃; (6)Storage Temperature Range, Tstg: -55 to +150℃; (7)Junction Temperature, TJ: 150℃; (8)Thermal Resistance, Junction-to-Ambient, Case 648, P Suffix, RθJA: 67℃/W; Case 751B, D Suffix, RθJA: 100℃/W; (9)Thermal Resistance, Junction-to-Case, Case 648, P Suffix, RθJC: 22℃/W; Case 751B, D Suffix, RθJC: 20℃/W; (10)Electrostatic Discharge Sensitivity, Human Body Model (HBM), ESD: 2000V; Machine Model (MM), ESD: 400V; Charged Device Model (CDM), ESD: 1500V.
Features
MC1413PG feature: Pb-Free Packages are Available.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC1413PG |
ON Semiconductor |
Transistors Darlington High Voltage High Current Darlington |
Data Sheet |
|
|
||||||||||||||||
