MC14013BDR2G

Dual Type D Flip-Flop, SOP, 500mW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~1.00

PartNumber:: MC14013BDR2G

Brand:: ON Semiconductor - ON | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-26

From Other Seller

Part Number:MC14013BDR2G
US $0.10 - 1.00
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

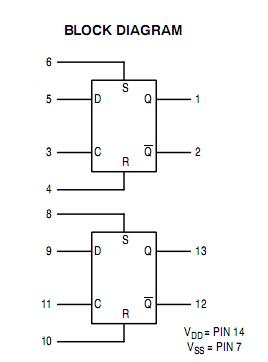

The MC14013BDR2G is a dual type D flip-flop. The MC14013BDR2G is constructed with MOS P-channel and N-channel enhancement mode devices in a single monolithic structure. Each flip-flop has independent Data, (D), Direct Set, (S), Direct Reset, (R), and Clock (C) inputs and complementary outputs (Q and Q). The device may be used as shift register elements or as type T flip-flops for counter and toggle applications.

Parametrics

MC14013BDR2G absolute maximum ratings: (1)DC Supply Voltage Range:-0.5 to +18.0 V; (2)Input or Output Voltage Range(DC or Transient):-0.5 to VDD+0.5V; (3)Input or Output Current(DC or Transient) per Pin:±10 mA; (4)Power Dissipation, per Package:500 mW; (5)Ambient Temperature Range:-55℃ to +125℃; (6)Storage Temperature Range:-65℃ to +150℃; (7)Lead Temperature(8-Second Soldering):260℃.

Features

MC14013BDR2G features: (1)Static Operation; (2)Diode Protection on All Inputs; (3)Supply Voltage Range = 3.0 Vdc to 18 Vdc; (4)Logic Edge-Clocked Flip-Flop Design; (5)Logic state is retained indefinitely with clock level either high or low; information is transferred to the output only on the positive-going edge of the clock pulse; (6)Capable of Driving Two Low-power TTL Loads or One Low-power Schottky TTL Load Over the Rated Temperature Range; (7)Pin-for-Pin Replacement for CD4013B; (8)Pb-Free Packages are Available.
