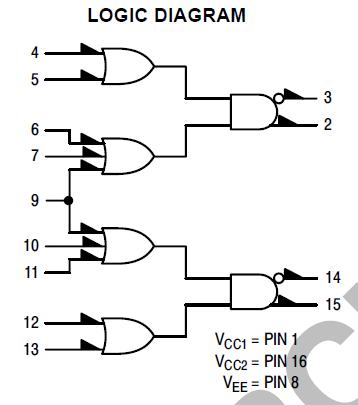

The MC10117P is a dual 2-wide 2-3-input OR-AND/OR-AND-Invert gate. This general purpose logic element is designed for use in data control, such as digital multiplexing or data distribution.
Parametrics
MC10117P absolute maximum ratings: (1)Power Supply Drain Current, IE: 20 to 26 mAdc; (2)Input Current, IinH: 350μAdc; IinL: 0.5mAdc; (3)Output Voltage Logic, VOH: -0.960 to -0.700Vdc; (4)Output Voltage Logic, VOL: -1.850 to -1.650Vdc; (5)Threshold Voltage Logic, VOHA: -0.980 to -0.910Vdc; (6)Threshold Voltage Logic, VOLA: -1.630Vdc.
Features
MC10117P features: (1)PD = 100 mW typ/pkg (No Load); (2)tpd = 2.3 ns typ; (3)tr, tf = 2.2 ns typ (20%-80%).
