Product Summary
The MBRD360T4 is a switchmode power rectifier. It is designed for use as output rectifiers, free wheeling, protection and steering diodes in switching power supplies, inverters and other inductive switching circuits.
Parametrics
MBRD360T4 absolute maximum ratings: (1)Peak Repetitive Reverse Voltage VRRM: 60 V; (2)Average Rectified Forward Current (TC = +125℃, Rated VR) IF(AV): 3 A; (3)Peak Repetitive Forward Current, TC = +125℃ (Rated VR, Square Wave, 20 kHz) IFRM: 6 A; (4)Nonrepetitive Peak Surge Current(Surge applied at rated load conditions halfwave, single phase, 60 Hz) IFSM: 75 A; (5)Peak Repetitive Reverse Surge Current (2 μs, 1 kHz) IRRM: 1 A; (6)Operating Junction Temperature Range TJ: -65 to +150 ℃; (7)Storage Temperature Range Tstg: -65 to +175 ℃; (8)Voltage Rate of Change (Rated VR) dv/dt: 10,000 V/μs.
Features
MBRD360T4 features: (1)Pb-Free Packages are Available; (2)Extremely Fast Switching; (3)Extremely Low Forward Drop; (4)Platinum Barrier with Avalanche Guardrings.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

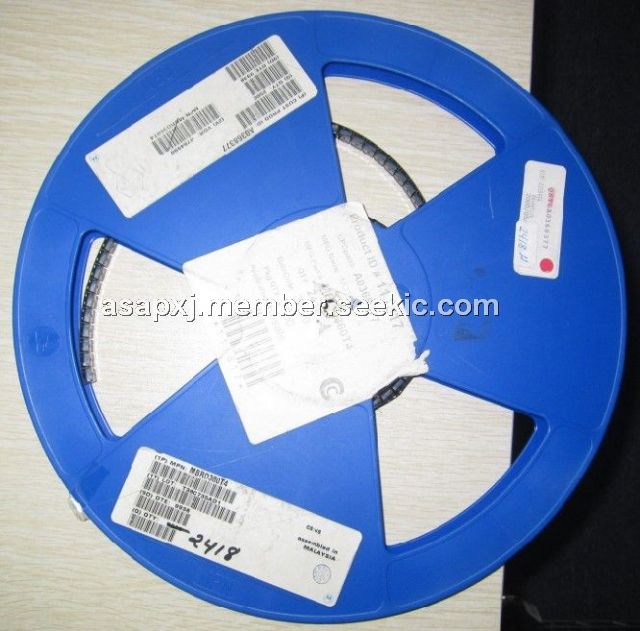

 MBRD360T4 |
ON Semiconductor |
Schottky (Diodes & Rectifiers) 3A 60V |
Data Sheet |
Negotiable |
|
||||||||||||
|
MBRD360T4G |
ON Semiconductor |
Schottky (Diodes & Rectifiers) 3A 60V |
Data Sheet |
|
|
||||||||||||
