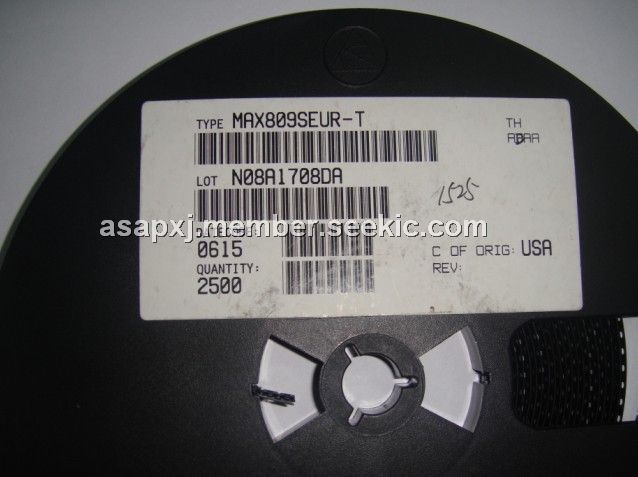

MAX809SEUR-T

SOP, microprocessor, Fully Specified Over Temperature, No External Components, 12μA, -0.3V to +6.0V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.00~5.00

PartNumber:: MAX809SEUR-T

Brand:: Maxim Integrated Products - Maxim | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-30

From Other Seller

Part Number:MAX809SEUR-T
US $0.00 - 5.00
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
AD595AD

US $7.00 - 9.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

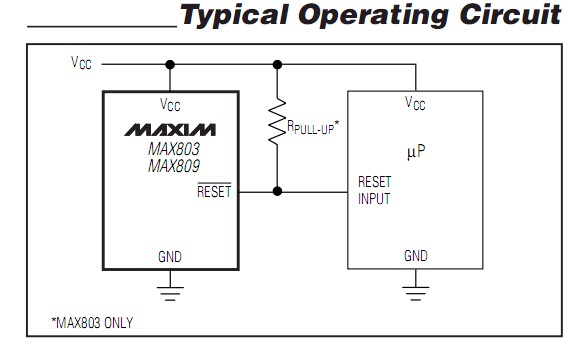

The MAX809SEUR-T microprocessor (μP) supervisory circuit is used to monitor the power supplies in μP and digital systems. It provides excellent circuit reliability and low cost by eliminating external components and adjustments when used with +5V, +3.3V, +3.0V, or +2.5V powered circuits. The MAX809SEUR-T performs a single function: it asserts a reset signal whenever the VCC supply voltage declines below a preset threshold, keeping it asserted for at least 140ms after VCC has risen above the reset threshold. Reset thresholds suitable for operation with a variety of supply voltage is available.

Parametrics

MAX809SEUR-T absolute maximum ratings: (1)Terminal Voltage (with respect to GND) VCC: -0.3V to +6.0V; (2)RESET, RESET (push-pull): -0.3V to (VCC + 0.3V); (3)RESET (open drain): -0.3V to +6.0V; (4)nput Current, VCC: 20mA; (5)Output Current, RESET, RESET: 20mA; (6)Rate of Rise, VCC: 100V/μs; (7)Continuous Power Dissipation (TA = +70℃): 3-Pin SC70 (derate 2.17mW/ ℃ above +70℃): 174mW; (8)3-Pin SOT23 (derate 4mW/℃ above +70℃): 320mW; (9)Operating Temperature Range, 3-Pin SC70: -40 to +125℃, 3-Pin SOT23: -40 to +105℃; (10)Storage Temperature Range: -65 to +150℃; (11)Lead Temperature (soldering, 10s): +300℃.

Features

MAX809SEUR-T features: (1)Precision Monitoring of +2.5V, +3V, +3.3V, and +5V Power-Supply Voltages; (2)Fully Specified Over Temperature; (3)Available in Three Output Configurations: Push-Pull RESET Output (MAX809); (4)140ms min Power-On Reset Pulse Width; (5)12μA Supply Current; (6)Guaranteed Reset Valid to VCC = +1V; (7)Power Supply Transient Immunity; (8)No External Components; (9)3-Pin SC70 and SOT23 Packages.
