Product Summary

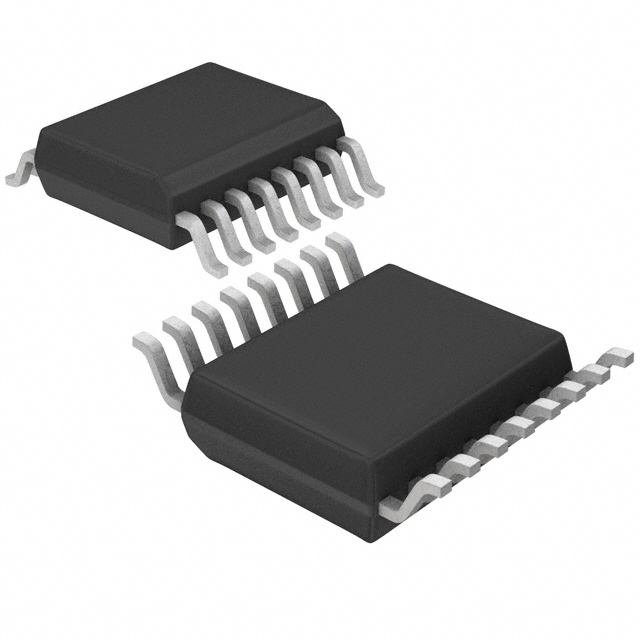

The MAX3232IDBR transceiver has a proprietary low-dropout transmitter output stage enabling true RS-232 performance from a 3.0V to 5.5V supply with a dual charge pump. The MAX3232IDBR requires only four small 0.1μF external chargepump capacitors. It is guaranteed to run at data rates of 120kbps while maintaining RS-232 output levels. The applications of the MAX3232IDBR include Notebook, Subnotebook, and Palmtop Computers, High-Speed Modems, Battery-Powered Equipment, Hand-Held Equipment, Peripherals, Printers.
Parametrics
MAX3232IDBR absolute maximum ratings: (1)VCC: -0.3V to +6V; (2)V+: -0.3V to +7V; (3)V-: +0.3V to -7V; (4)V+ + V-: +13V; (5)Input Voltages: T_IN, SHDN, EN: -0.3V to +6V, MBAUD: -0.3V to (VCC + 0.3V), R_IN: ±25V; (6)Output Voltages: T_OUT: ±13.2V, R_OUT: -0.3V to (VCC + 0.3V); (7)Short-Circuit Duration T_OUT: Continuous; (8)Continuous Power Dissipation (TA = +70℃): 16-Pin Plastic DIP (derate 10.53mW/℃ above +70℃): 842mW, 16-Pin Narrow SO (derate 8.70mW/℃ above +70℃): 696mW; (9)Operating Temperature Ranges: -40℃ to +85℃; (10)Storage Temperature Range: -65℃ to +150℃; (11)Lead Temperature (soldering, 10sec): +300℃.
Features
MAX3232IDBR features: (1)Low Supply Current: 300μA; (2)Guaranteed Data Rate: 120kbps; (3)1μA Low-Power Shutdown with Receivers Active; (4)Meets EIA/TIA-232 Specifications Down to 3.0V; (5)Pin Compatible with Industry-Standard; (6)Guaranteed Slew Rate: 6V/μs.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX3232IDBR |
Texas Instruments |
Buffers & Line Drivers 3-5.5V Mult-Ch RS232 |
Data Sheet |
|
|
||||||||||||
|
MAX3232IDBRE4 |
Texas Instruments |
Buffers & Line Drivers 3-5.5V Multichannel Line Drvr/Rcvr |
Data Sheet |
|
|
||||||||||||
|
MAX3232IDBRG4 |
Texas Instruments |
RS-232 Interface IC 3-5.5V Multich RS- 232 Line Drvr/Rcvr |
Data Sheet |
|
|
||||||||||||
