Product Summary
The MAX2140ETH is a complete SDAS receiver. The MAX2140ETH is designed for satellite digital audio radio services (SDARS). The device includes a fully monolithic VCO and only needs a SAW at the IF and a crystal to generate the reference frequency. The applications of the MAX2140ETH include Satellite Digital Audio Radio Services (SDARS), 2.4GHz ISM Radios
Parametrics
MAX2140ETH absolute maximum ratings: (1)VCC_XX to GND: -0.3V to +4.3V; (2)VINANT to GND: -0.3V to +5.6V; (3)AGCPWM to GND: -0.3V to +3.0V; (4)Digital Input Current : ±10mA; (5)Maximum VSWR Without Damage: 4:1; (6)Maximum VSWR Without Oscillations: 4:1; (7)Continuous Power Dissipation (TA = +70℃) 44-Pin QFN (derate 26.31mW/°C above +70℃): 2105mW; (8)Operating Temperature Range: -40℃ to +85℃; (9)Junction Temperature: +150℃; (10)Theta JC: 12℃/W°C/W; (11)Storage Temperature Range: -65℃ to +150℃; (12)Lead Temperature (soldering, 10s): +300℃.
Features
MAX2140ETH features; (1)Integrated Receiver, Requires Only One SAW Filter; (2)Self-Contained RF AGC Loop; (3)Differential I/Q Interface; (4)Complete Integrated Frequency Generation; (5)Bias Supply for External LNAs; (6)Overcurrent Protection; (7)Low-Power Standby Mode; (8)Very Small 44-Pin Thin QFN Package.

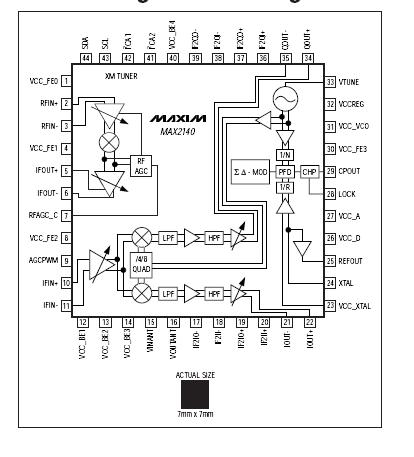

Diagrams
