Product Summary
The M63828DP is a seven-circuit Darlington transistor with clamping diodes. The circuit is made of NPN transistors. The M63828DP performs high-current driving with extremely low inputcurrent supply. It is designed for drives of relays and printers, digit drives of indication elements (LEDs and lamps), and MOS-bipolar logic IC interfaces.
Parametrics
M63828DP absolute maximum ratings: (1)VCEO Collector-emitter voltage: -0.5 to +50V; (2)IC Collector current: 500mA; (3)VI Input voltage: -0.5 to +30 V; (4)IF Clamping diode forward current: 500mA; (5)VR Clamping diode reverse voltage: 50V; (6)Pd Power dissipation: 1W; (7)Topr Operating temperature: -40 to +85℃; (8)Tstg Storage temperature: -55 to +125℃.
Features
M63828DP features: (1)Two package configurations (WP/DP); (2)High breakdown voltage (BVCEO ≥ 50V); (3)High-current driving (Ic(max) = 500mA); (4)With clamping diodes; (5)Driving available with TTL, PMOS IC output; (6)Wide operating temperature range (Ta = –40 to +85℃).

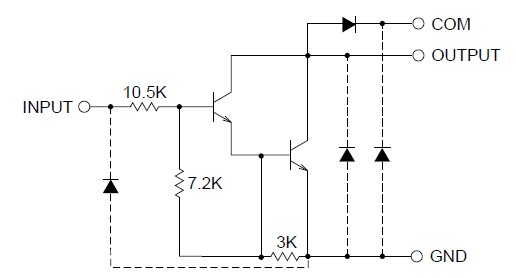

Diagrams
