Product Summary
The LTC1235CS is a microprocessor supervisory circuit. The LTC1235CS provides complete power supply monitoring and battery control functions for microprocessor reset, battery backup, RAM write protection, power failure warning and watchdog timing. The LTC1235CS has all the LTC695 features plus conditional battery backup and external reset control. When an out-of-tolerance power supply condition occurs, the reset outputs are forced to active states and the Chip Enable output write-protects external memory. The applications of the LTC1235CS include Critical μP Power Monitoring; Intelligent Instruments; Battery-Powered Computers and Controllers; Automotive Systems.
Parametrics
LTC1235CS absolute maximum ratings: (1)Terminal Voltage VCC: –0.3V to 6.0V, VBATT: –0.3V to 6.0V, All Other Inputs:–0.3V to (VCC + 0.3V); (2)Input Current VCC: 200mA, VBATT: 50mA; (3)VOUT Output Current: Short Circuit Protected; (4)Power Dissipation: 500mW; (5)Operating Temperature Range: 0℃ to 70℃; (6)Storage Temperature Range: –65℃ to 150℃; (7)Lead Temperature (Soldering, 10 sec.): 300℃.
Features
LTC1235CS features: (1) Guaranteed Reset Assertion at VCC = 1V; (2)1.5mA Maximum Supply Current; (3) Fast (35ns Max.) Onboard Gating of RAM Chip Enable Signals; (4)Conditional Battery Backup Extends Battery Life; (5)4.65V Precision Voltage Monitor; (6)Power OK/Reset Time Delay: 200ms; (7)External Reset Control; (8)Minimum External Component Count; (9)1mA Maximum Standby Current; (10)Voltage Monitor for Power Fail or Low Battery Warning; (11)Thermal Limiting; (12)Performance Specified Over Temperature; (13)All the LTC695 Features Plus Conditional Battery Backup and External Reset Control.

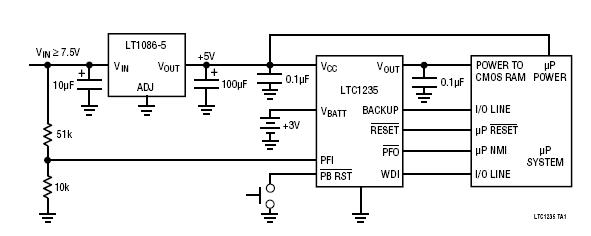

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LTC1235CSW |
|
IC MPU SUPERVISRY CIRCUIT 16SOIC |
Data Sheet |
|
|
||||||||||
|
LTC1235CSW#PBF |
|
IC MPU SUPERVISRY CIRCUIT 16SOIC |
Data Sheet |
|
|
||||||||||
|
LTC1235CSW#TR |
|
IC MPU SUPERVISRY CIRCUIT 16SOIC |
Data Sheet |
|
|
||||||||||
|
LTC1235CSW#TRPBF |
|
IC MPU SUPERVISRY CIRCUIT 16SOIC |
Data Sheet |
|
|
||||||||||
