Product Summary
The LM75CIMM-5 is a temperature sensor, Delta-Sigma analog-to-digital converter, and digital over-temperature detector with I2C interface. The 3.0V to 5.5V supply voltage range, low supply current and I2C interface make the LM75CIMM-5 ideal for a wide range of applications. The applications of the LM75CIMM-5 are System Thermal Management, Personal Computers, Office Electronics, Electronic Test Equipment.
Parametrics
LM75CIMM-5 absolute maximum ratings: (1)Supply Voltage:-0.3V to 6.5V; (2)Voltage at any Pin:-0.3V to +VS + 0.3V; (3)Input Current at any Pin:5 mA; (4)Package Input Current:20 mA; (5)O.S. Output Sink Current:10 mA; (6)O.S. Output Voltage:6.5V; (7)Storage Temperature:-65℃ to +150℃; (8)ESD Susceptibility:Human Body Model:2500V, Machine Model:250V.
Features
LM75CIMM-5 features: (1)SOP-8 and Mini SOP-8 (MSOP) packages save space; (2)I2C Bus interface; (3)Separate open-drain output pin operates as interrupt or comparator/thermostat output; (4)Register readback capability; (5)Power up defaults permit stand-alone operation as thermostat; (6)Shutdown mode to minimize power consumption; (7)Up to 8 LM75s can be connected to a single bus; (8)UL Recognized Component.

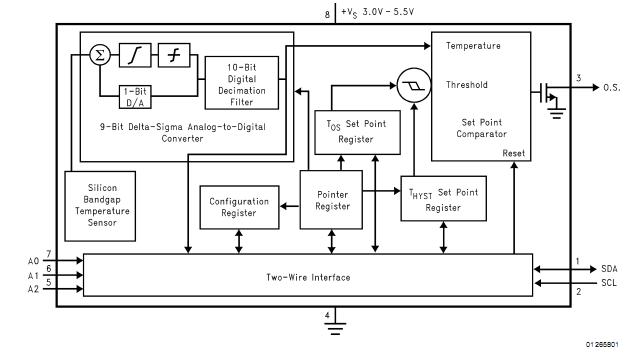

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

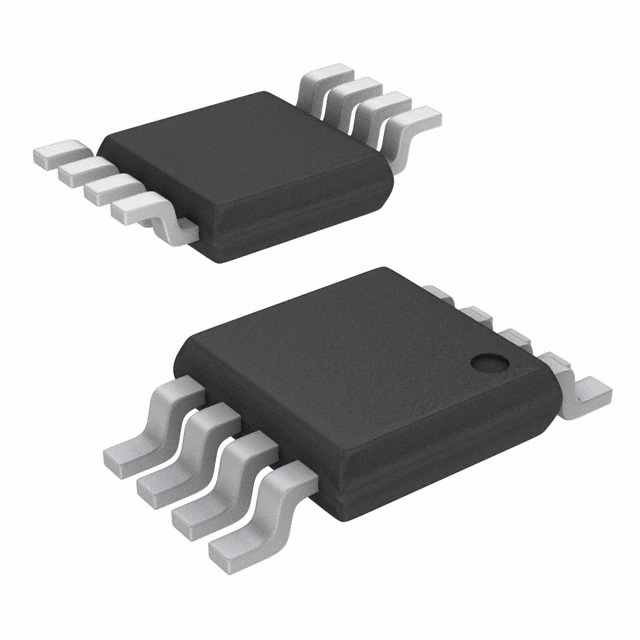

 LM75CIMM-5 |
|
IC TEMP SENSOR 5V DIGITAL 8MSOP |
Data Sheet |
Negotiable |
|
||||
|
LM75CIMM-5/NOPB |
|
IC TEMP SENSOR DGTL 8-MSOP |
Data Sheet |
Negotiable |
|
||||
