Product Summary
The LM4871MX is a bridge-connected audio power amplifier capable of delivering typically 1.1W of continuous average power to an 8W load with 0.5% (THD) from a 5V power supply. Boomer audio power amplifiers were designed specifically to provide high quality output power with a minimal amount of external components. Since the LM4871MX does not require output coupling capacitors, bootstrap capacitors, or snubber networks, it is optionally suited for low-power portable systems. The applications of the LM4871MX include Portable Computers, Desktop Computers, Low Voltage Audio Systems.
Parametrics
LM4871MX absolute maximum ratings: (1)Supply Voltage: 6.0V; (2)Supply Temperature: -65℃ to +150℃; (3)Input Voltage: -0.3V to VDD to +0.3V; (4)Power Dissipation: Internally Limited; (5)ESD Susceptibility: 5000V; (6)ESD Susceptibility: 250V; (7)Junction Temperature: 150℃; (8)Soldering Information: Small Outline Package Vapor Phase (60 sec.): 215℃.
Features
LM4871MX features: (1)No output coupling capacitors, bootstrap capacitors, or snubber circuits are necessary; (2)Small Outline or DIP packaging; (3)Unity-gain stable; (4)External gain configuration capability; (5)Pin compatible with LM4861.

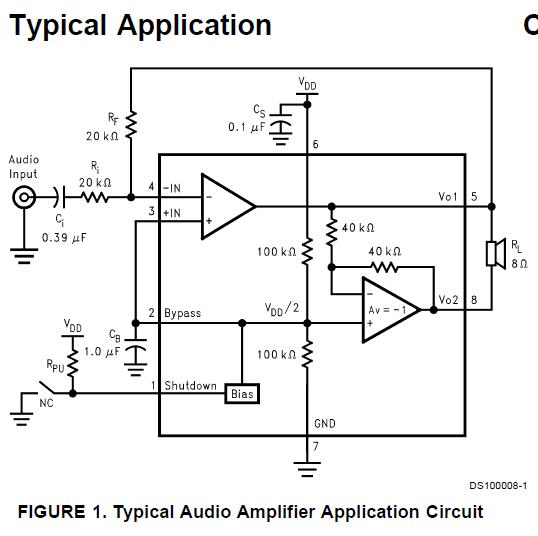

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM4871MX |
National Semiconductor (TI) |
Audio Amplifiers |
Data Sheet |
|
|
||||||||||||
 |
LM4871MX/NOPB |
National Semiconductor (TI) |
Audio Amplifiers |
Data Sheet |
|
|
||||||||||||
