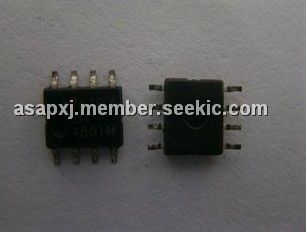

Product Summary

The LM4861MX is a bridge-connected audio power amplifier capable of delivering 1.1W of continuous average power to an 8W load with 1% (THD) using a 5V power supply. Boomer audio power amplifiers were designed specifically to provide high quality output power with a minimal amount of external components using surface mount packaging. Since the LM4861MX does not require output coupling capacitors, bootstrap capacitors, or snubber networks, it is optimally suited for low-power portable systems. The LM4861MX features an externally controlled, low-power consumption shutdown mode, as well as an internal thermal shutdown protection mechanism. The applications of the LM4861MX include Personal computers, Portable consumer products, Self-powered speakers, Toys and games.

Parametrics

LM4861MX absolute maximum ratings: (1)Supply Voltage: 6.0V; (2)Storage Temperature: -65℃ to +150℃; (3)Input Voltage: -0.3V to VDD + 0.3V; (4)Power Dissipation: Internally limited; (5)ESD Susceptibility: 3000V; (6)ESD Susceptibility: 250V; (7)Junction Temperature: 150℃; (8)Soldering Information Small Outline Package: Vapor Phase (60 sec.): 215℃, Infrared (15 sec.): 220℃.

Features

LM4861MX features: (1)No output coupling capacitors, bootstrap capacitors, or snubber circuits are necessary; (2)Small Outline (SO) packaging; (3)Compatible with PC power supplies; (4)Thermal shutdown protection circuitry; (5)Unity-gain stable; (6)External Gain Configuration Capability.

Diagrams

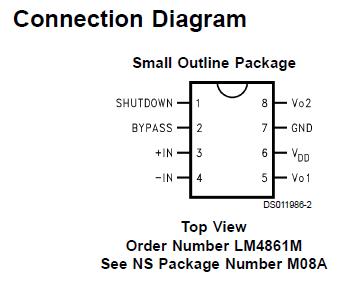

LM4861MX connection diagram
