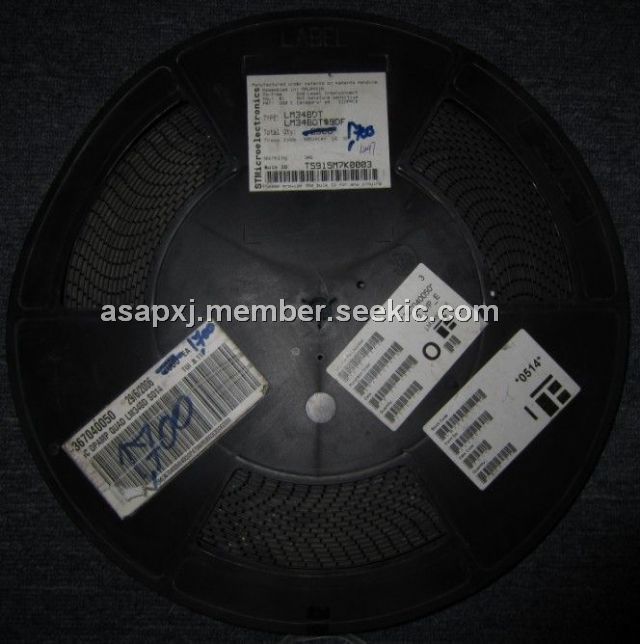

LM348DT

LM348DT, Operational Amplifier, SOP14, ±22V, ±44V, 500mW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.24~0.24 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.24~0.24

PartNumber:: LM348DT

Brand:: STMicroelectronics - ST | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-06

From Other Seller

Part Number:LM348DT
US $0.24 - 0.24
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LM348DT is a four UA741 quad bipolar operational amplifier. The LM348DT consists of four independent, high gain internally compensated, low power operational amplifiers which have been designed to provide functional characteristics identical to those of the familiar UA741 operational amplifier. In addition the total supply current for all four amplifiers is compatible to the supply current of a single UA741 type op amp. Other features include input offset current and input bias current which are much less than those of a standard UA741. Also, excellent isolation between amplifiers has been achieved by independently biasing each amplifier and using layout techniques qhich minimize thermal coupling. The LM348DT can be used anywhere multiple UA741 type amplifiers are being used and in applications where amplifier matching or high packaing density is required.

Parametrics

LM348DT absolute maximum ratings: (1)Supply voltage: ±22V; (2)Input Voltage: ±22V; (3)Differential Input Voltage: ±44V; (4)Output Short-circuit Duration: Infinite; (5)Power Dissipation: 500mW; (6)Operating Free-air Temperature Range: -55℃ to +125℃, -40℃ to +105℃, 0℃ to +70℃; (7)Storage Temperature Range: -65℃ to +150℃.

Features

LM348DT features: (1)low supply current: 0.53ma/amplifier; (2)class AB output stage: no cross over distortion; (3)pin compatible with lm124; (4)low input offset voltage: 1mv; (5)low input offset current: 2na; (6)low input bias current: 30na; (7)gain bandwidth product: 1.3mhz; (8)high degree of isolation between amplifiers: 120db; (9)overload protection for inputs and outputs.
