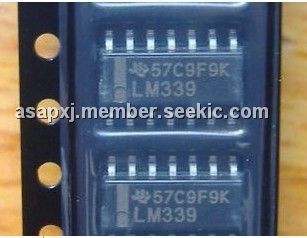

Product Summary
The LM339AMX is a Low Power Low Offset Voltage Quad Comparator. It consists of four independent precision voltage comparators with an offset voltage specification as low as 2 mV max for all four comparators. The LM339AMX is designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. The LM339AMX also has a unique characteristic in that the input common-mode voltage range includes ground, even though operated from a single power supply voltage.
Parametrics
LM339AMX absolute maximum ratings: (1)Supply Voltage, V+: 36 VDC or ±18 VDC; (2)Differential Input Voltage: 36 VDC; (3)Input Voltage: -0.3 VDC to +36 VDC; (4)Input Current (VIN<.0.3 VDC): 50 mA; (5)Power Dissipation: Molded DIP: 1050 mW, Cavity DIP: 1190 mW; (6)Small Outline Package: 760 mW; (7)Output Short-Circuit to GND: Continuous Continuous; (8)Storage Temperature Range: -65℃ to +150℃; (9)Lead Temperature (Soldering, 10 seconds): 260℃; (10)Operating Temperature Range: 0℃ to +70℃.
Features
LM339AMX features: (1)Wide supply voltage range; (2)LM139/139A Series 2 to 36 VDC or ±1 to ±18 VDC; (3)LM2901: 2 to 36 VDC or ±1 to ±18 VDC; (4)LM3302: 2 to 28 VDC or ±1 to ±14 VDC; (5)Very low supply current drain (0.8 mA) — independent of supply voltage; (6)Low input biasing current: 25 nA; (7)Low input offset current: ±5 nA; (8)Offset voltage: ±3 mV; (9)Input common-mode voltage range includes GND; (10)Differential input voltage range equal to the power supply voltage; (11)Low output saturation voltage: 250 mV at 4 mA; (12)Output voltage compatible with TTL, DTL, ECL, MOS and CMOS logic systems.

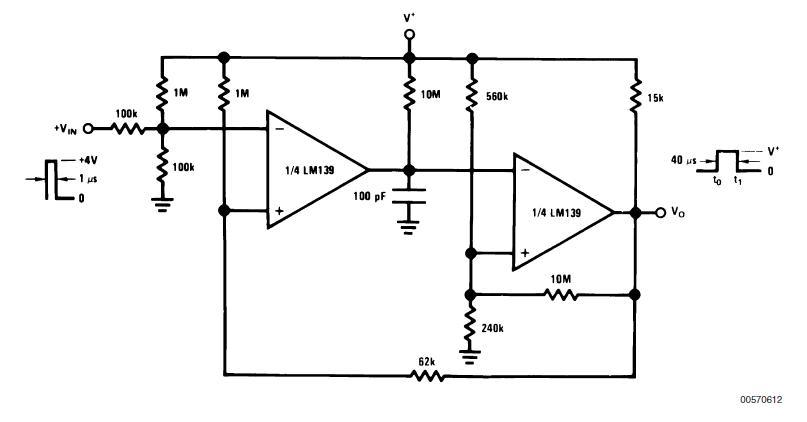

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM339AMX |
Fairchild Semiconductor |
Comparator ICs Quad Comparator |
Data Sheet |
|
|
||||||||||||
|
LM339AMX/NOPB |
National Semiconductor (TI) |
Comparator ICs LOW PWR LOW OFFSET VLTG QUAD COMPARATOR |
Data Sheet |
|
|
||||||||||||
