Product Summary

Parametrics

Series: -
Manufacturer: Texas Instruments
Type: General Purpose
CMRR, PSRR (Typ): -
Propagation Delay (Max): -
Hysteresis: -
Output Type: CMOS, MOS, Open-Collector, TTL
Current - Output (Typ): 20mA
Number of Elements: 4
Operating Temperature: -40°C ~ 85°C
Mounting Type: Through Hole
Packaging: Tube

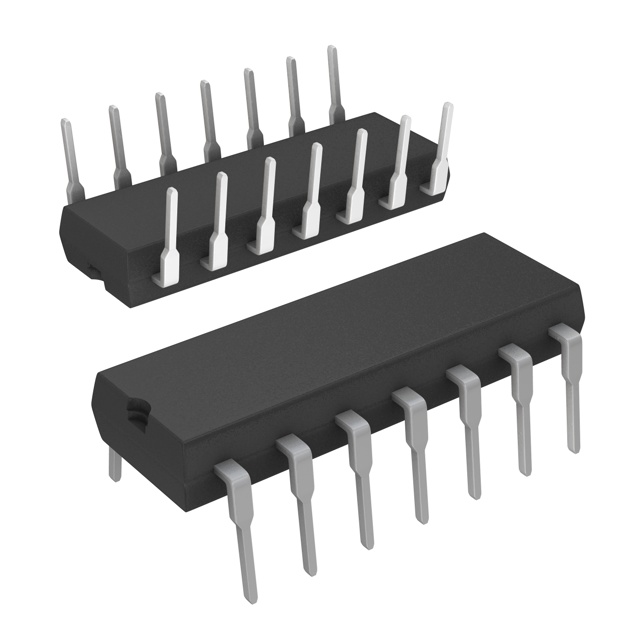

Package / Case: 14-DIP (0.300", 7.62mm)
Current - Quiescent (Max): 800µA
Voltage - Supply, Single/Dual (±): 2 V ~ 28 V, ±1 V ~ 14 V
Voltage - Input Offset (Max): 20mV @ 28V
Current - Input Bias (Max): 0.5µA @ 5V

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LM3302N
LM3302N
Texas Instruments
Comparator ICs Quad Differential Comparator
Data Sheet
0-1: $0.52
1-25: $0.40
25-100: $0.35
100-250: $0.31
LM3302NE4
LM3302NE4
Texas Instruments
Comparator ICs Quad Differential Comparator
Data Sheet
0-1: $0.47
1-25: $0.37
25-100: $0.32
100-250: $0.28
LM3302N/NOPB
LM3302N/NOPB

IC COMPARATOR QUAD 14-DIP
Data Sheet
Negotiable
