Product Summary
The LM324ADR is a quadruple operational amplifier. It consists of four independent high-gain frequency-compensated operational amplifiers that are designed specifically to operate from a single supply over a wide range of voltages. Operation from split supplies also is possible if the difference between the two supplies is 3 V to 32 V (3 V to 26 V for the LM2902), and VCC is at least 1.5 V more positive than the input common-mode voltage. The low supply-current drain of LM324ADR is independent of the magnitude of the supply voltage.
Parametrics
LM324ADR absolute maximum ratings: (1)Supply voltage, VCC: ±16 or 32 V; (2)Differential input voltage, VID: ±32 V; (3)Input voltage, VI (either input): -0.3 to 32 V; (4)Operating virtual junction temperature, TJ: 150 ℃; (5)Case temperature for 60 seconds FK package: 260 ℃; (6)Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds J or W package: 300 ℃; (7)Storage temperature range, Tstg: -65 to 150 ℃.
Features
LM324ADR features: (1)2-kV ESD Protection for: LM224K, LM224KA, LM324K, LM324KA, LM2902K, LM2902KV, LM2902KAV; (2)Wide Supply Ranges: Single Supply 3 V to 32 V (26 V for LM2902), Dual Supplies ±1.5 V to ±16 V (±13 V for LM2902); (3)Low Supply-Current Drain Independent of Supply Voltage 0.8 mA Typ; (4)Common-Mode Input Voltage Range Includes Ground, Allowing Direct Sensing Near Ground; (5)Low Input Bias and Offset Parameters: Input Offset Voltage 3 mV Typ, A Versions 2 mV Typ, Input Offset Current 2 nA Typ, Input Bias Current 20 nA Typ, A Versions 15 nA Typ.

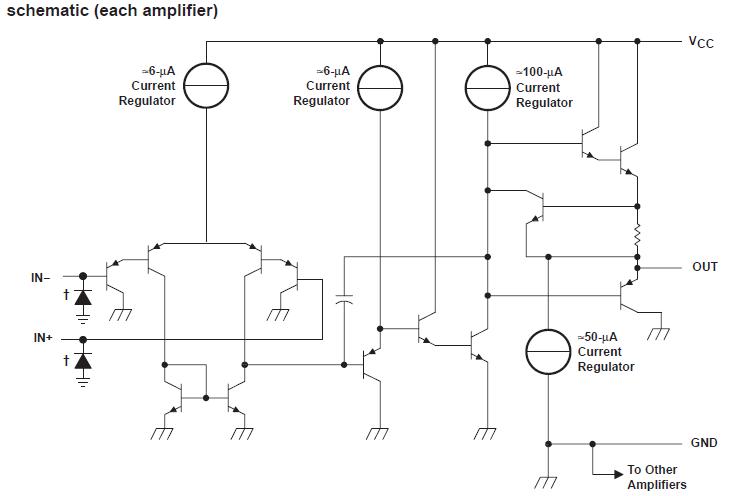

Diagrams
