LM2903P

dual differential comparator, 8-TSSOP, 2 V to 36 V, 0.4 mA, LM2903P

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.07~0.07 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.07~0.07

PartNumber:: LM2903P

Brand:: Texas Instruments - TI | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-13

From Other Seller

Part Number:LM2903P
US $0.07 - 0.07
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

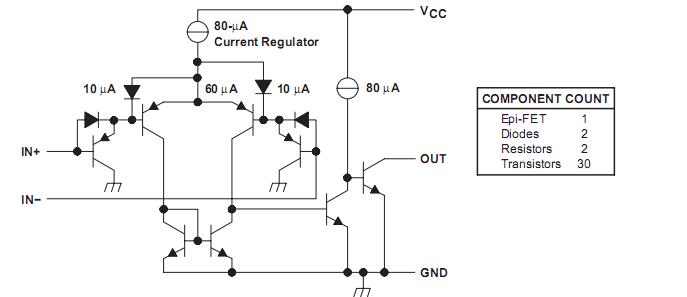

The LM2903P is a dual differential comparator. Operation from dual supplies also is possible as long as the difference between the two supplies is 2 V to 36 V, and VCC is at least 1.5 V more positive than the input common-mode voltage. The LM2903P consists of two independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. The LM2903P is characterized for operation from -25℃ to 85℃.

Parametrics

LM2903P absolute maximum ratings: (1)Supply voltage:36 V; (2)Differential input voltage:±36 V; (3)Input voltage range:-0.3 V to 36 V; (4)Output voltage:36 V; (5)Output current:20 mA; (6)Duration of output short-circuit to ground:Unlimited; (7)Package thermal impedance:97℃/W; (8)Operating virtual junction temperature:150℃; (9)Storage temperature range:-65℃ to 150℃.

Features

LM2903P features: (1)Single Supply or Dual Supplies; (2)Wide Range of Supply Voltage: Max Rating:2 V to 36 V, Tested to 30 V:Non-V Devices, Tested to 32 V:V-Suffix Devices; (3)Low Supply-Current Drain Independent of Supply Voltage:0.4 mA Typ Per Comparator; (4)Low Input Bias Current:25 nA Typ; (5)Low Input Offset Voltage:2 mV Typ; (6)Common-Mode Input Voltage Range Includes Ground; (7)Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage:±36 V; (8)Low Output Saturation Voltage; (9)Output Compatible With TTL, MOS, and CMOS.
