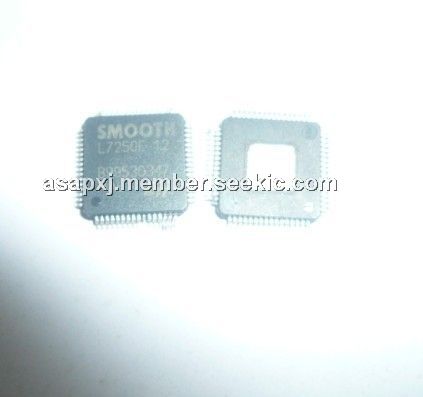

Product Summary
The L7250E is a power IC for driving the SPINDLE and VCM motors. It is suitable for 5V & 12V application. The spindle system includes integrated power FETs which are driven using ST’s Smoothdrive pseudo-si-nusoidal commutation technology. Power monitoring of VCC5, VCC12, and of the two positive voltage regulators is also included. The L7250E uses a 3 wire serial interface: S_DATA, S_CLK and S_ENABLE.
Parametrics
L7250E absolute maximum ratings: (1)VCV1,VCV2,VCV3,VCV4:14V; (2)VCC5 maximum voltage:6V; (3)OUTU1, OUTU2, OUTV1, OUTV2, OUTW1, OUTW2, VCMP1, VCMP2, VCMN1, VCMN2, VM1, VM2: -1V to 16V; (4)Digital Input Voltage:-0.3V to VCC5; (5)Operating free-air temperature:0 to 70℃; (6)Storage Temperature:-55 to 150℃.
Features
L7250E features: (1)12V & 5V (±10%) operation; (2)register based architecture; (3)3 wire serial communication interface up to 33 MHz; (4)bcd technology.

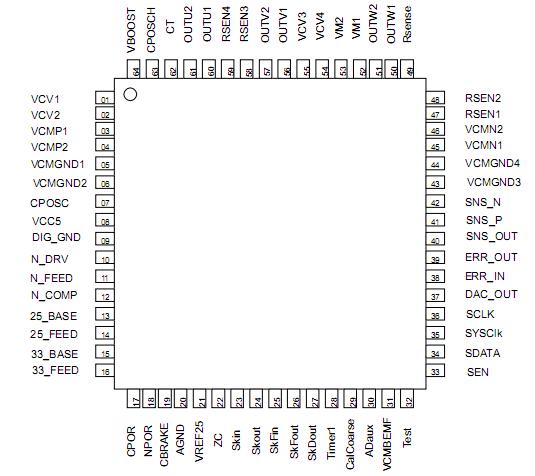

Diagrams
