Product Summary
The KTA1270 is an epitaxial planar PNP transistor. The device is suitable for general purpose application and switching application.
Parametrics
KTA1270 absolute maximum ratings: (1)collector base voltage, VCBO: -35V; (2)collector emitter voltage, VCEO: -30V; (3)emitter base voltage, VEBO: -5V; (4)collector current, IC: -500mA; (5)base current, IE: 500mA; (6)collector power dissipation, PC: 625mW; (7)junction temperature, Tj: 150℃; (8)storage temperature range, Tstg: -55 to 150℃.
Features
KTA1270 features: (1)excellent hFE linearity; (2)complementary to KTC3202.

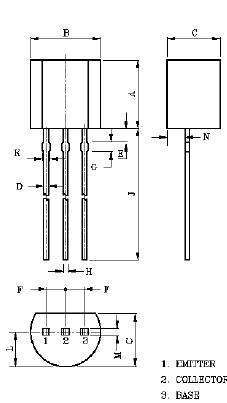

Diagrams
 |
