Product Summary
The KTA1266 is an epitaxial planar PNP transistor. The device is suitable for general purpose application and switching application.
Parametrics
KTA1266 absolute maximum ratings: (1)collector base voltage, VCBO: -50V; (2)collector emitter voltage, VCEO: -50V; (3)emitter base voltage, VEBO: -5V; (4)collector current, IC: -150mA; (5)base current, IB: -50mA; (6)collector power dissipation, PC: 625mW; (7)junction temperature, Tj: 150℃; (8)storage temperature range, Tstg: -55 to 150℃.
Features
KTA1266 features: (1)excellent hFE linearity; (2)low noise; (3)complementary to KTC3198.

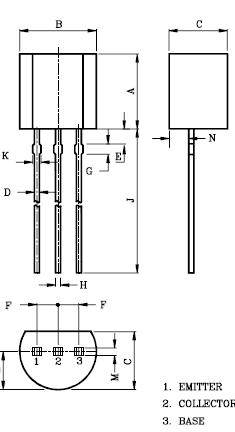

Diagrams
 |
