Product Summary
The KA555ID is a highly stable controller capable of producing accurate timing pulses. With monos table operation, the time delay is controlled by one external resistor and one capacitor. With astable operation, the frequency and duty cycle are accurately controlled with two external resistors and one capacitor. The applications of the KA555ID are Precision Timing, Pulse Generation, Time Delay Generation, Sequential Timing.
Parametrics
KA555ID absolute maximum ratings: (1)Supply Voltage:16V; (2)Lead Temperature (Soldering 10sec):300℃; (3)Power Dissipation:600mW; (4)Operating Temperature Range: -40℃ to +85℃; (5)Storage Temperature Range:- 65℃ to +150℃.
Features
KA555ID features: (1)High Current Drive Capability (200mA); (2)Adjustable Duty Cycle; (3)Temperature Stability of 0.005%/℃; (4)Timing From Msec to Hours; (5)Turn Off Time Less Than 2Msec.

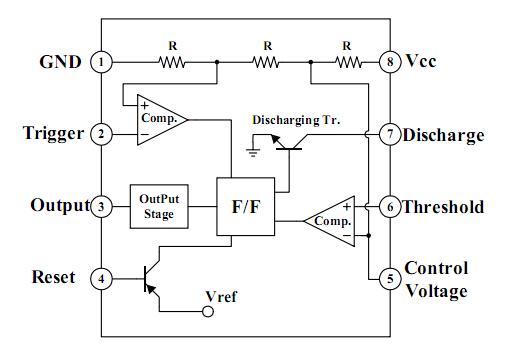

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 KA555ID |
Fairchild Semiconductor |
Timers & Support Products Single Timer |
Data Sheet |
Negotiable |
|
||||
|
KA555IDTF |
Fairchild Semiconductor |
Timers & Support Products Single Timer |
Data Sheet |
Negotiable |
|
||||
