Product Summary
The JRC4558 is a high performance monolithic dual operational amplifier.
Parametrics
JRC4558 absolute maximum ratings: (1)Its supply voltage would be +/-22V. (2)Its differential input voltage would be +/-18V. (3)Its input voltage would be +/-15V. (4)Its operating temperature range would be from -20℃ to 85℃. (5)Its power dissipation would e 600mW for P-DIP8 and would be 400mW for SOP8. (6)Its storage temperature range would be from -65℃ to 150℃.
Features
JRC4558 features: (1)No frequency compensation required. (2)No latch up. (3)Large common mode and differential voltage range. (4)Parameter tracking over temperature range. (5)Gain and phase match between amplifiers. (6)Internally frequency compensated. (7)Low noise input transistors. (8)Pin to pin compatible with MC1458/LM358.

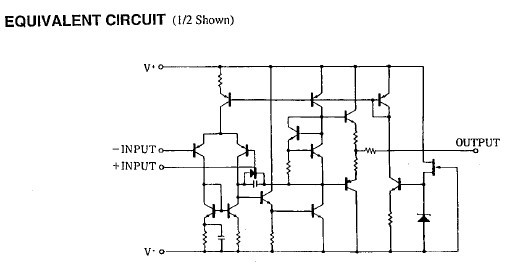

Diagrams
