The JQ1-12V is a 1C 10A small Power Relay. The applications of the JQ1-12V include air conditioners, refrigerators, and microwave ovens heaters.
Parametrics
JQ1-12V absolute maximum ratings: (1) Max. Operating speed: 20cpm; (2) Initial insulation resistance: Min. 1,000MΩ at 500V; (3) Initial breakdown voltage between open contacts: 750Vrms for 1 min; (4) Surge voltage between contact and coil: 8000V; (5) Operate time (at nominal voltage): Approx. 5 ms; (6) Temperature rise: Max. 45℃; (7)Conditions for operation, transport and storage Ambient temperature: –40℃ to +85℃; (8)Humidity: 5% to 85% R.H.; (9) Unit weight: Approx. 7g.
Features
JQ1-12V features: (1) High electrical noise immunity; (2) High switching capacity in a compact package; (3) High sensitivity: 200mW (1a), 400mW (1c); (4) High surge voltage: 8,000 V between contacts and coil; (5) UL, CSA, VDE, TUV, SEMKO approved; (6) Class B coil insulation type available.

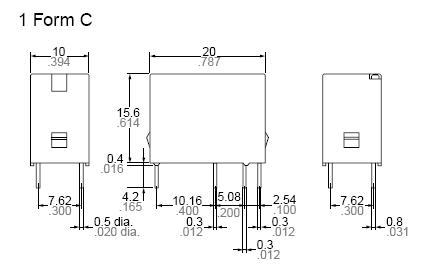

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 JQ1-12V |
Panasonic Electric Works |
General Purpose / Industrial Relays 5A 12VDC SPDT PCB |
Data Sheet |
|
|
||||||||||||
|
JQ1-12V-F |
Panasonic Electric Works |
General Purpose / Industrial Relays 5A 12VDC SPDT PCB |
Data Sheet |
|
|
||||||||||||
