ISL84467IRTZ-T

Analog Switch, TQFN, 1.65V to 4.5V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~2.00

PartNumber:: ISL84467IRTZ-T

Brand:: Intersil Corporation - Intersil | Pack: QFN | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-26

From Other Seller

Part Number:ISL84467IRTZ-T
US $0.10 - 2.00
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

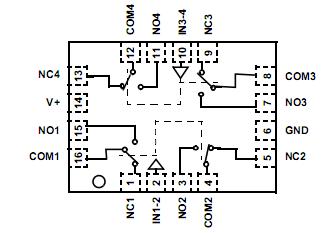

The ISL84467IRTZ-T is a low ON-resistance, low voltage, bidirectional, Quad SPDT (Dual DPDT) analog switch. It is designed to operate from a single +1.65V to +4.5V supply. Targeted applications include battery powered equipment that benefit from low rON (0.39Ω) and fast switching speeds (tON = 33ns, tOFF = 16ns). The ISL84467IRTZ-T consists of four SPDT switches. It is configured as a dual double-pole/double-throw (DPDT) device with two logic control inputs that control two SPDT switches each. The applications of the ISL84467IRTZ-T include Cellular/Mobile Phones, Pagers, Laptops, Notebooks, Palmtops, Portable Test and Measurement, Medical Equipment, Audio and Video Switching.

Parametrics

ISL84467IRTZ-T absolute maximum ratings: (1)V+ to GND:-0.5 to 5.5V; (2)Input Voltages: NO, NC, IN :-0.5 to ((V+) + 0.5V); (3)Output Voltages: COM:-0.5 to ((V+) + 0.5V); (4)Continuous Current NO, NC, or COM:±300mA; (5)Peak Current NO, NC, or COM (Pulsed 1ms, 10% Duty Cycle, Max):±500mA; (6)Human Body Model (COMX):>9kV; (7)Human Body Model (NOX, NCX, INX, V+, GND) :>6kV; (8)Machine Model (COMX):>700V; (9)Machine Model (NOX, NCX, INX, V+, GND):>300V; (10)Charged Device Model:>1kV.

Features

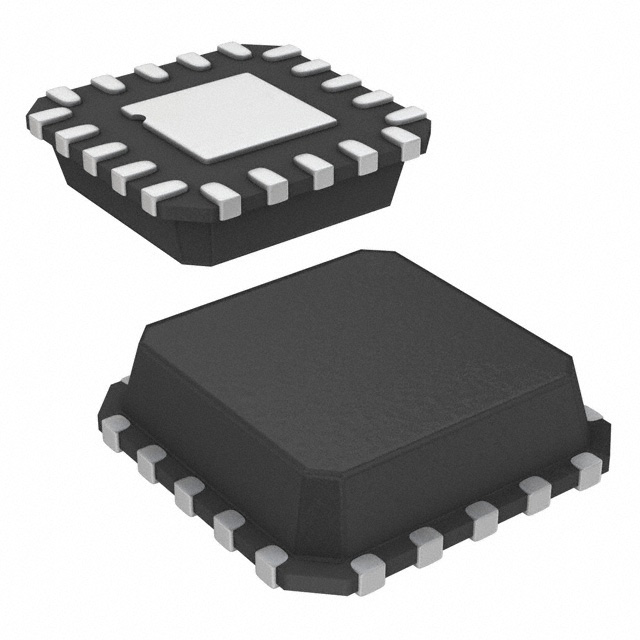

ISL84467IRTZ-T features: (1)ON-Resistance (rON):V+ = +4.3V:0.39Ω, V+ = +3.0V:0.45Ω,V+ = +1.8V:0.65Ω; (2)rON Matching Between Channels:0.05Ω; (3)rON Flatness Across Signal Range:0.05Ω; (4)Single Supply Operation: +1.65V to +4.5V; (5)Low Power Consumption (PD):<0.68μW; (6)Fast Switching Action (V+ = +4.3V):tON:33ns, tOFF:16ns; (7)Break-Before-Make; (8)1.8V Logic Compatible (+3V supply); (9)Low ICC Current when VinH is not at the V+ Rail; (10)Available in 16 Ld 3x3 TQFN; (11)ESD HBM Rating: COM Pins:9kV, All Other Pins:6kV; (12)Pb-Free Plus Anneal Available (RoHS Compliant).
