Product Summary

The IRLR2703TRPBF is a HEXFET power MOSFET. The IRLR2703TRPBF utilizes advanced processing techniques to achieve the lowest possible on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFETs are well known for, provides the designer with an extremely efficient device for use in a wide variety of applications. The IRLR2703TRPBF is designed for surface mounting using vapor phase, infrared, or wave soldering techniques.

Parametrics

IRLR2703TRPBF absolute maximum ratings: (1)ID @ TC = 25℃ Continuous Drain Current, VGS @ 10V: 23 A; (2)ID @ TC = 100℃ Continuous Drain Current, VGS @ 10V: 16 A; (3)IDM Pulsed Drain Current: 96 A; (4)PD @TC = 25℃ Power Dissipation: 45 W; (5)Linear Derating Factor: 0.30 W/℃; (6)VGS Gate-to-Source Voltage: ±16 V; (7)EAS Single Pulse Avalanche Energy: 77 mJ; (8)IAR Avalanche Current: 14 A; (9)EAR Repetitive Avalanche Energy: 4.5 mJ; (10)dv/dt Peak Diode Recovery dv/dt: 5.0 V/ns; (11)TJ TSTG Operating Junction and Storage Temperature Range: -55 to + 175 ℃; (12)Soldering Temperature, for 10 seconds 300 (1.6mm from case ) ℃.

Features

IRLR2703TRPBF features: (1)Logic-Level Gate Drive; (2)Ultra Low On-Resistance; (3)Surface Mount; (4)Advanced Process Technology; (5)Fast Switching; (6)Fully Avalanche Rated.

Diagrams

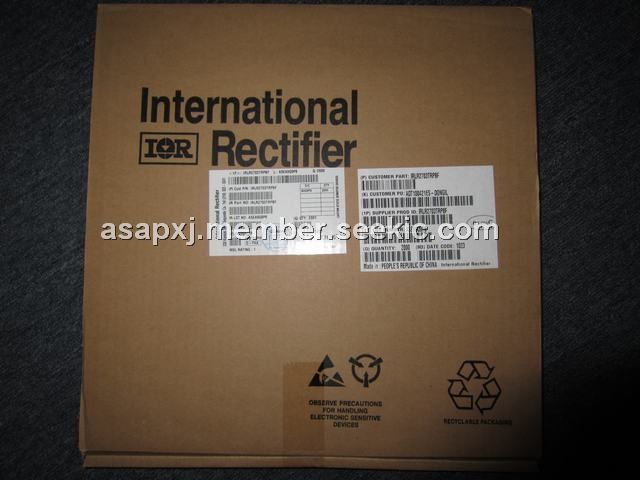

IRLR2703TRPBF diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
IRLR2703TRPBF
IRLR2703TRPBF

International Rectifier

MOSFET

Data Sheet

0-2650: $0.24
