Product Summary

The IRL7833PBF is a HEXFET power MOSFET. It is used in (1)High Frequency Synchronous Buck Converters for Computer Processor Power; (2)High Frequency Isolated DC-DC Converters with Synchronous Rectification for Telecom and Consumer Use; (3)Lead-Free.

Parametrics

IRL7833PBF absolute maximum ratings: (1)VDS Drain-to-Source Voltage: 30V; (2)VGS Gate-to-Source Voltage: ±20V; (3)ID @ TC = 25℃ Continuous Drain Current, VGS @ 10V: 150A; (4)ID @ TC = 100℃ Continuous Drain Current, VGS @ 10V: 110A; (5)IDM Pulsed Drain Current: 600A; (6)PD @TC = 25℃ Maximum Power Dissipation: 140W; (7)PD @TC = 100℃ Maximum Power Dissipation: 70W; (8)Linear Derating Factor: 0.96W/℃; (9)TJ, TSTG Operating Junction and Storage Temperature Range: -55 to 175℃.

Features

IRL7833PBF features: (1)Very Low RDS(on) at 4.5V VGS; (2)Ultra-Low Gate Impedance; (3)Fully Characterized Avalanche Voltage and Current.

Diagrams

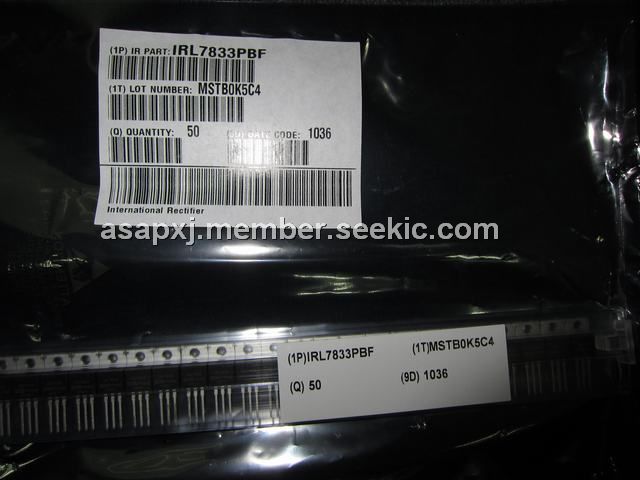

IRL7833PBF diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
IRL7833PBF
IRL7833PBF

International Rectifier

MOSFET MOSFT 30V 150A 32nV 3.8mOhm Qg log lvl

Data Sheet

0-1: $2.04
1-25: $1.32
25-100: $0.95
100-250: $0.89
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
IRL7833
IRL7833

Other


Data Sheet

Negotiable
IRL7833L
IRL7833L

Other


Data Sheet

Negotiable
IRL7833LPBF
IRL7833LPBF

International Rectifier

MOSFET MOSFT 30V 150A 3.8mOhm 32nC Log Lvl

Data Sheet

0-1: $1.77
1-25: $1.15
25-100: $0.83
100-250: $0.77
IRL7833PBF
IRL7833PBF

International Rectifier

MOSFET MOSFT 30V 150A 32nV 3.8mOhm Qg log lvl

Data Sheet

0-1: $2.04
1-25: $1.32
25-100: $0.95
100-250: $0.89
IRL7833S
IRL7833S


MOSFET N-CH 30V 150A D2PAK

Data Sheet

0-200: $1.46
IRL7833SPBF
IRL7833SPBF

International Rectifier

MOSFET MOSFT 30V 150A 32nC 3.8mOhm Qg log lvl

Data Sheet

0-1: $1.82
1-25: $1.25
25-100: $0.90
100-250: $0.89
