Product Summary
The IRF3706STRLPBF is a SMPS MOSFET. It is used in High Frequency Isolated DC-DC Converters with Synchronous Rectification for Telecom and Industrial Use, High Frequency Buck Converters for Computer Processor Power.
Parametrics
IRF3706STRLPBF absolute maximum ratings: (1)VDS Drain-Source Voltage: 20 V; (2)VGS Gate-to-Source Voltage: ±12 V; (3)ID @ TC = 25℃ Continuous Drain Current, VGS @ 10V: 77 A; (4)ID @ TC = 100℃ Continuous Drain Current, VGS @ 10V: 54 A; (5)IDM Pulsed Drain Current: 280 A; (6)PD @TC = 25℃ Maximum Power Dissipation: 88 W; (7)PD @TC = 100℃ Maximum Power Dissipation: 44 W; (8)Linear Derating Factor: 0.59 W/℃; (9)TJ , TSTG Junction and Storage Temperature Range: -55 to + 175 ℃.
Features
IRF3706STRLPBF features: (1)Ultra-Low Gate Impedance; (2)Very Low RDS(on) at 4.5V VGS; (3)Fully Characterized Avalanche Voltage and Current.

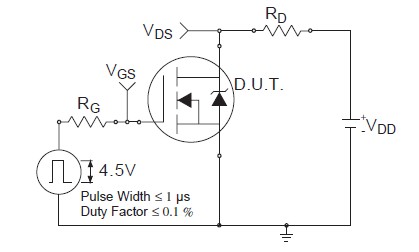

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 IRF3706STRLPBF |
International Rectifier |
MOSFET |
Data Sheet |
|
|
||||||||||||
