Product Summary

The IDT71024S20Y is a 1,048,576-bit high-speed static RAM organized as 128K×8. The IDT71024S20Y is fabricated using IDT’s high performance, high-reliability CMOS technology. This state of the art technology, combined with innovative circuit design techniques, provides a cost-effective solution for high-speed memory needs. The IDT71024S20Y is packaged in 32-pin 300 mil Plastic SOJ, 32-pin 400 mil Plastic SOJ, and 32-pin 400×820 mil LCC packages.

Parametrics

IDT71024S20Y absolute maximum ratings: (1)Terminal Voltage Relative to GND: -0.5V to +7.0V; (2)Temperature Under Bias: -65℃ to +135℃; (3)Storage Temperature: -65℃ to +150℃; (4)Power Dissipation: 1.25W; (5) DC Output Current: 50mA.

Features

IDT71024S20Y features: (1)128K×8 advanced high-speed CMOS static RAM; (2)Commercial (0℃ to 70℃), Industrial (-40℃ to 85℃) and Military (-55℃ to 125℃) temperature options; (3)Equal access and cycle times; (4)Military: 15/17/20/25ns; (5)Industrial: 15/20ns; (6)Commercial: 12/15/17/20ns; (7)Two Chip Selects plus one Output Enable pin; (8)Bidirectional inputs and outputs directly TTL-compatible; (9)Low power consumption via chip deselect; (10)Available in 300 and 400 mil Plastic SOJ, and LCC packages; (11)Military product compliant to MIL-STD-883, Class B.

Diagrams

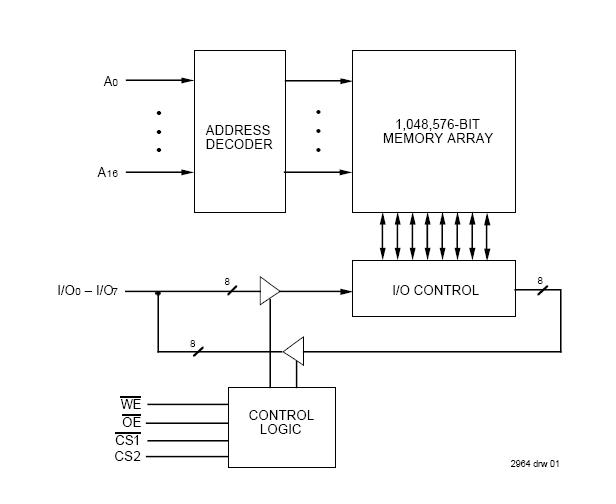

IDT71024S20Y block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IDT71024S20Y
IDT71024S20Y

IC SRAM 1MBIT 20NS 32SOJ
Data Sheet
Negotiable
IDT71024S20Y8
IDT71024S20Y8

IC SRAM 1MBIT 20NS 32SOJ
Data Sheet
Negotiable
IDT71024S20YG
IDT71024S20YG

IC SRAM 1MBIT 20NS 32SOJ
Data Sheet
0-345: $1.53
IDT71024S20YG8
IDT71024S20YG8

IC SRAM 1MBIT 20NS 32SOJ
Data Sheet
0-1: $2.48
1-25: $2.02
25-100: $1.82
100-250: $1.65
250-500: $1.45
IDT71024S20YGI
IDT71024S20YGI

IC SRAM 1MBIT 20NS 32SOJ
Data Sheet
0-1: $2.48
1-25: $2.00
25-100: $1.82
100-250: $1.64
250-500: $1.47
500-1000: $1.24
1000-2500: $1.18
2500-5000: $1.13
5000-10000: $1.10
IDT71024S20YGI8
IDT71024S20YGI8

IC SRAM 1MBIT 20NS 32SOJ
Data Sheet
0-1: $2.66
1-25: $2.17
25-100: $1.95
100-250: $1.77
250-500: $1.55
IDT71024S20YI
IDT71024S20YI

IC SRAM 1MBIT 20NS 32SOJ
Data Sheet
Negotiable
IDT71024S20YI8
IDT71024S20YI8

IC SRAM 1MBIT 20NS 32SOJ
Data Sheet
Negotiable
