Product Summary

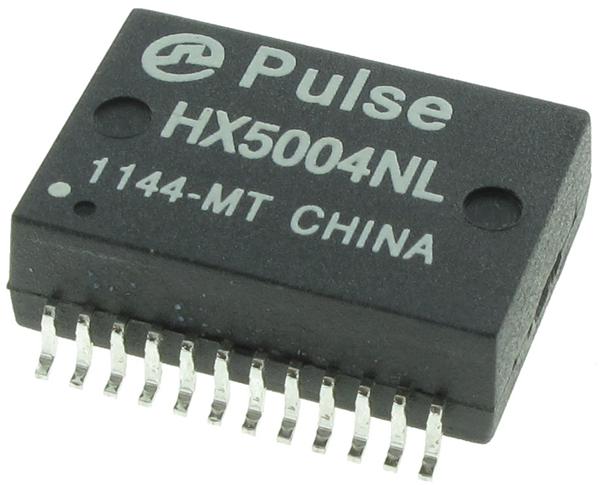

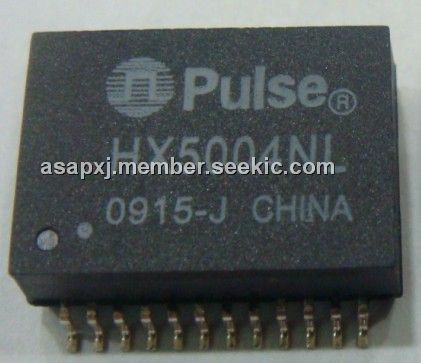

The HX5004NL is a 1000BASE-T magnetics module. It is designed to Support 1:1 Turns Ratio Transceivers.

Parametrics

HX5004NL absolute maximum ratings: (1)Insertion Loss (dB MAX): 1 dB at 1-100MHz; (2)Return Loss (dB MIN): -18 dB at 1-30MHz, -18 dB at 40MHz, -16 dB at 50MHz, -12 dB at 60-80MHz, -10 dB 100MHz; (3)Differential to Common Mode Rejection (dB MIN): -43 dB at 30MHz, -37 dB at 60MHz, -33 dB at 100MHz; (4)Crosstalk (dB MIN): -43 dB at 30MHz, -37 dB at 60MHz, -33 dB at 100MHz; (5)Hipot (VRMS MIN): 1500 V.

Features

HX5004NL features: (1)RoHS-5 peak reflow temperature rating 235℃; (2)RoHS-6 peak reflow temperature rating 245℃; (3)Meets IEEE 802.3 specification.

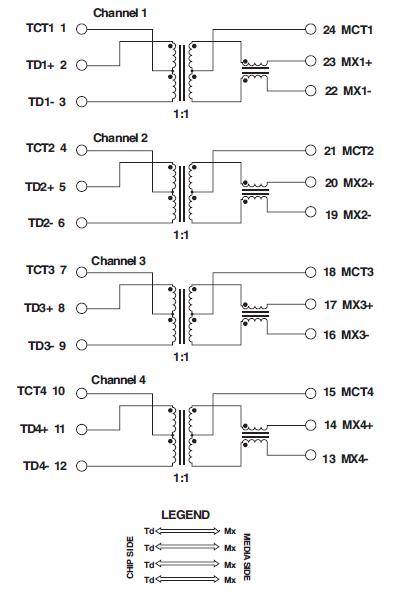

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
HX5004NL
HX5004NL
Pulse
Transformers Audio & Signal GIGABIT SGL
Data Sheet
0-1: $6.65
1-10: $5.05
10-100: $4.21
100-500: $3.93
HX5004NLT
HX5004NLT
Pulse
Transformers Audio & Signal GIGABIT SGL
Data Sheet
0-1: $5.54
1-10: $4.21
10-100: $3.50
100-300: $3.50
