Product Summary

The HX1259NLT is a 10/100BASE-T Transformer Module with PoE Option and 1:1 Turns Ratios.

Parametrics

HX1259NLT absolute maximum ratings: (1)PoE: No; (2)Number of Ports: 4; (3)Insertion Loss (dB MAX): 0.1 MHz: -1.2; 100 MHz: -1.4; (4)Return Loss (Z out = 100 Ω ±15%): 30 MHz: -16; 60 MHz: -10; 80 MHz: -10; (5)Hipot (Vrms MIN): 1500.

Features

HX1259NLT features: (1)RoHS peak reflow temperature rating 245℃; (2)Meets IEEE 802.3 specification; (3)Compact footprint.

Diagrams

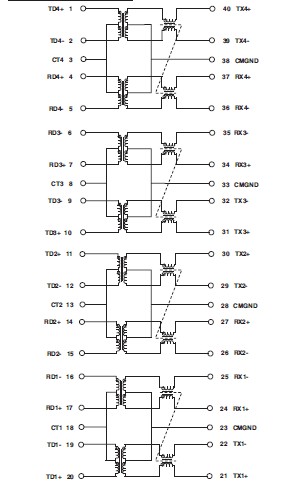

HX1259NLT circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
HX1259NLT
HX1259NLT
Pulse
Transformers Audio & Signal EXT TMP VER H1259
Data Sheet
0-156: $3.95
156-250: $3.95
250-500: $3.50
500-1000: $3.26
