Product Summary

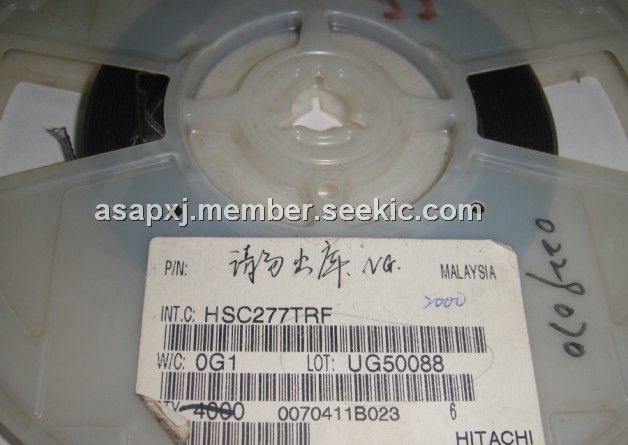

The HSC277TRF is a Silicon Epitaxial Planar Diode for UHF/VHF tuner Band Switch.

Parametrics

HSC277TRF absolute maximum ratings: (1)Reverse voltage:35V; (2)Power dissipation:150mW; (3)Junction temperature:125℃; (4)Storage temperature:-45 to +125℃; (5)Operation temperature:-20 to +60℃.

Features

HSC277TRF features: (1)Low forward resistance (rf = 0.7Ω max) ; (2)Ultra small Flat Lead Package (UFP) is suitable for surface mount design.

Diagrams

HSC277TRF pin configuration
