Product Summary

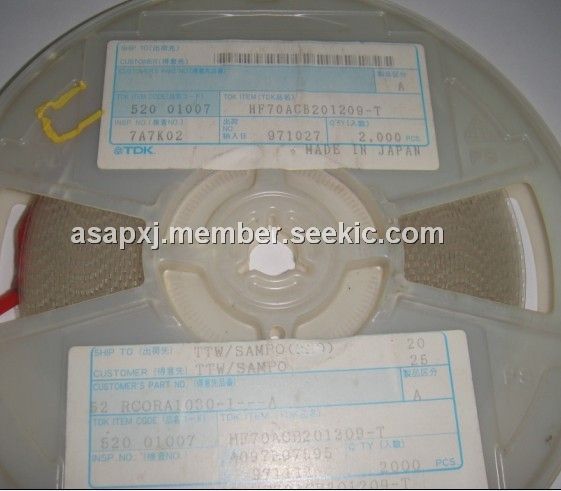

The HF70ACB201209-T is an EMC Component. The device is applicable for both flow and reflow solderings, and have outstanding physical characteristics such as excellent terminal strength, body strength, resistance to soldering heat, solderability and mounting reliability.
Parametrics
HF70ACB201209-T general specifications: (1)Impedance [100MHz]:10Ω±25%; (2)DC resistance max.:0.1Ω; (3)Rated current max.:600mA.
Features
HF70ACB201209-T features: (1)This extensive series completely covers impedance values ranging from 7 to 125Ω[100MHz] and can be applied to a wide range of circuits; (2)The 2012, 3216, 3225 and 4532 types all use HF70, 50 and 30 materials. The most suitable component can be selected for the circuit pattern and the suppression band; (3)These components are applicable for both flow and reflow solderings, and have outstanding physical characteristics such as excellent terminal strength, body strength, resistance to soldering heat, solderability and mounting reliability.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HF70ACB201209-T |
TDK |
EMI Filter Beads, Chokes & Arrays 10 OHM 25% FERRITE CORE |
Data Sheet |
|
|
||||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||||
|
HF70ACB201209-T |
TDK |
EMI Filter Beads, Chokes & Arrays 10 OHM 25% FERRITE CORE |
Data Sheet |
|
|
||||||||||||||||
|
HF70ACB322513-T |
TDK |
EMI Filter Beads, Chokes & Arrays 52ohms 0.3ohms 400mA |
Data Sheet |
|
|
||||||||||||||||
 |
HF70ACC201209-T |
|
FERRITE CHIP 10 OHM 1.5A 0805 |
Data Sheet |
|
|
||||||||||||||||
|
HF70ACC322513-T |
TDK |
EMI Filter Beads, Chokes & Arrays 52 OHMS IMP 1.5mA |
Data Sheet |
|
|
||||||||||||||||
|
HF70RH7X8X4 |
TDK |
EMI Filter Beads, Chokes & Arrays FERRITE CORE |
Data Sheet |
Negotiable |
|
||||||||||||||||
|
HF70T18X6X10 |
TDK |
EMI Filter Beads, Chokes & Arrays TOROID |
Data Sheet |
|
|
||||||||||||||||
