Product Summary

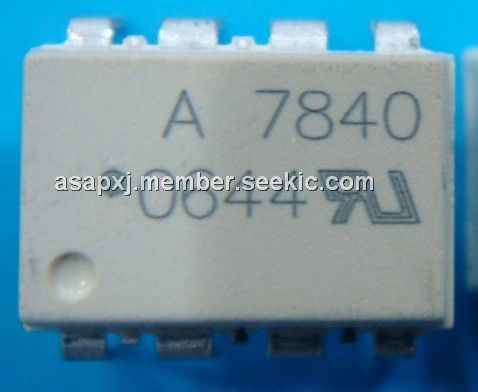

The HCPL-7840 isolation amplifier was designed for current sensing in electronic motor drives. In a typical implementation, motor currents flow through an external resistor and the resulting analog voltage drop is sensed by the HCPL-7840. A differential output voltage is created on the other side of the HCPL-7840 optical isolation barrier. This differential output voltage is proportional to the motor current and can be converted to a single-ended signal by using an op-amp as shown in the recommended application circuit. The applications of the HCPL-7840 include Motor phase and rail current sensing, Inverter current sensing, Switched mode power supply signal isolation, General purpose current sensing and monitoring, General purpose analog signal isolation.
Parametrics
HCPL-7840 absolute maximum ratings: (1)Storage Temperature: -55 to 125 ℃; (2)Operating Temperature: - 40 to 100 ℃; (3)Supply Voltage: 0 to 5.5 V; (4)Steady-State Input Voltage: -2.0 to VDD1 +0.5 V; (5)2 Second Transient Input Voltage: -6.0 to VDD1 +0.5 V; (6)Output Voltage: -0.5 to VDD2 +0.5 V.
Features
HCPL-7840 features: (1)15 kV/μs common-mode rejection at VCM = 1000 V; (2)Compact, auto-insertable standard 8-pin DIP package; (3)0.00025 V/V/℃ gain drift vs. temperature; (4)0.3 mV input offset voltage; (5)100 kHz bandwidth; (6)0.004% nonlinearity; (7)Worldwide safety approval: UL 1577 (3750 Vrms/1 min.) and CSA, IEC/EN/DIN EN 60747-5-2 (Option #060 only); (8)Advanced Sigma-Delta (A/D converter technology); (9)Fully differential circuit topology; (10)0.8 μm CMOS IC technology.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HCPL-7840 |
Avago Technologies |
Isolation Amplifiers 4.5 - 5.5 SV 8 dB |
Data Sheet |
|
|
||||||||||||
|
HCPL-7840#060 |
Avago Technologies |
Isolation Amplifiers 4.5 - 5.5 SV 8 dB |
Data Sheet |
|
|
||||||||||||
|
HCPL-7840#300 |
Avago Technologies |
Isolation Amplifiers 4.5 - 5.5 SV 8 dB |
Data Sheet |
|
|
||||||||||||
|
HCPL-7840#560 |
Avago Technologies |
Isolation Amplifiers 4.5 - 5.5 SV 8 dB |
Data Sheet |
|
|
||||||||||||
|
HCPL-7840#500 |
Avago Technologies |
Isolation Amplifiers 4.5 - 5.5 SV 8 dB |
Data Sheet |
|
|
||||||||||||
|
HCPL-7840#360 |
Avago Technologies |
Isolation Amplifiers 4.5 - 5.5 SV 8 dB |
Data Sheet |
|
|
||||||||||||
|
HCPL-7840-300E |
Avago Technologies |
Isolation Amplifiers 4.5 - 5.5 SV 8 dB |
Data Sheet |
|
|
||||||||||||
|
HCPL-7840-500E |
Avago Technologies |
Isolation Amplifiers 4.5 - 5.5 SV 8 dB |
Data Sheet |
|
|
||||||||||||
