Product Summary

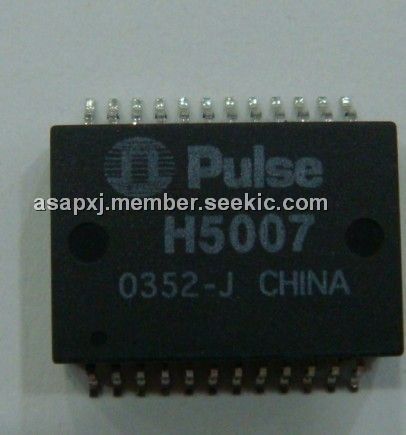

The H5007 is a 1000 base-T magnetics module designed to supprot 1:1 turns ratio trransceivers.

Parametrics

H5007 absolute maximum ratings: (1)number of ports: 1; (2)insertion loss: 1dB max at 1-100MHz; (3)return lss: -18dB min at 1-30MHz; -18dB max at 40MHz; -16dB max; -12dB max at 60-80MHz; -10dB max at 100MHz; (4)differential to common mode rejection: -43dB min at 30MHz; -37dB min at 60MHz; -33dB min at 100MHz; (5)crosstalk: -43dB min at 30MHz; -43dB min at 60MHz; -33dB min at 100MHz; (6)hipot: 1500Vrms.

Features

H5007 features: (1)RoHS peak reflow temperature rating 245℃; (2)Meets IEEE 802.3 specification.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
H5007
H5007

Pulse

Transformers Audio & Signal 24-PIN SOIC

Data Sheet

0-1: $5.10
1-10: $4.24
10-25: $3.77
25-100: $3.26
H5007NL
H5007NL

Pulse

Transformers Audio & Signal 24-PIN SOIC

Data Sheet

0-1: $3.68
1-10: $2.95
10-100: $2.40
100-500: $2.17
H5007NLT
H5007NLT

Pulse

Transformers Audio & Signal 24-PIN SOIC

Data Sheet

0-1: $3.68
1-10: $2.95
10-100: $2.40
100-300: $2.40
H5007T
H5007T

Pulse

Transformers Audio & Signal 24-PIN SOIC

Data Sheet

0-188: $3.26
188-300: $3.26
300-564: $3.11
564-1128: $3.02
