Product Summary

The H1200NLT is a 10/100BASE-TX Dual port transformer module For Use with Transceivers Requiring 1:1 Transmit and Receive Turns Ratios.

Parametrics

H1200NLT absolute maximum ratings: (1)Insertion Loss (dB MAX): 0.1-100 MHz: -1.0; (2)Return Loss (dB TYP): 2-30 MHz: -16; 40 MHz: -14.4; 50 MHz:-13; 60-80 MHz: -12; (3)Differential to Common Mode Rejection (dB MIN): 1-60 MHz: -37; 60-200 MHz: -33.

Features

H1200NLT features: (1)RoHS reflow temperature rating 245℃; (2)Meets IEEE 802.3 specification; (3)Some models offer AutoMDIX capability.

Diagrams

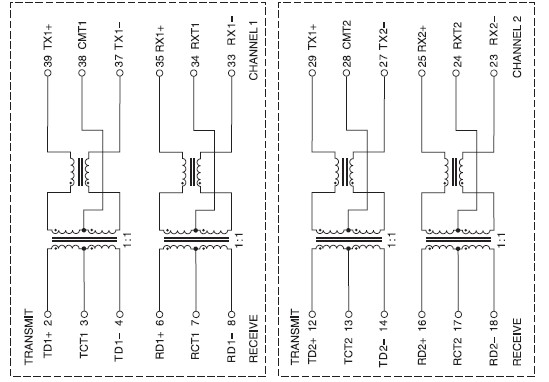

H1200NLT circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
H1200NLT
H1200NLT
Pulse
Transformers Audio & Signal 10/100 DUAL 40PIN
Data Sheet
0-67: $5.76
67-100: $2.33
100-250: $2.33
250-500: $2.32
