Product Summary

The H0019NLT is a 10/100 PC Card LAN magnetics module.

Parametrics

H0019NLT absolute maximum ratings: (1)Turns Ratio (±5%): 1:1;(2)Insertion Loss (dB MAX): 100 kHz-100 MHz: -0.9; (3)Return Loss (dB MIN): 30 MHz: -18; 60 MHz:-12; 80 MHz: -11;(4)Hipot (Vrms MIN): 1500.

Features

H0019NLT features: (1)RoHS peak reflow temperature rating 245℃; (2)Low profile packages from .094” (2,39mm) to .078”(1,98mm) for PC card and cardbus applications.

Diagrams

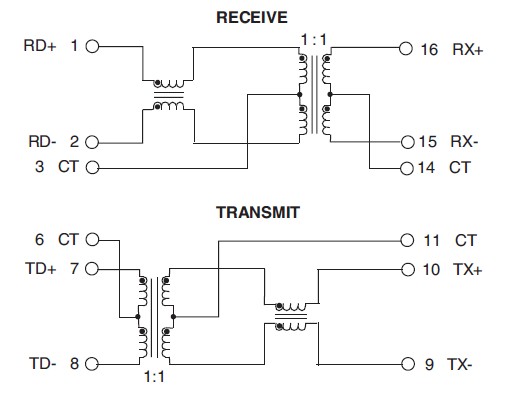

H0019NLT circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
H0019NLT
H0019NLT
Pulse
Transformers Audio & Signal 10/100 PC CARD SGL
Data Sheet
0-745: $1.86
745-1000: $1.79
1000-2500: $1.73
