Product Summary

The H0013NLT is a 10/100 PC card lan magnetics module.

Parametrics

H0013NLT Specifications: (1)Insertion Loss(dB max) 100KHz-100MHz: -0.9; (2)Return Loss(dB min): 30 MHz: -16; 60 MHz: -12; 80 MHz: -11; (3)Differential to Common Mode Rejection(dB min): 30 MHz: -35; 50 MHz: -33; 100MHz: -20; (4)Crosstalk(dB min): 30 MHz: -50; 62 MHz: -45; 100 MHz: -40; (5)Hipot(Vrms min): 1500.

Features

H0013NLT features: (1)RoHS peak reflow temperature rating 245℃; (2)Low profile packages from .094 (2,39mm) to .078(1,98mm) for PC card and cardbus applications.

Diagrams

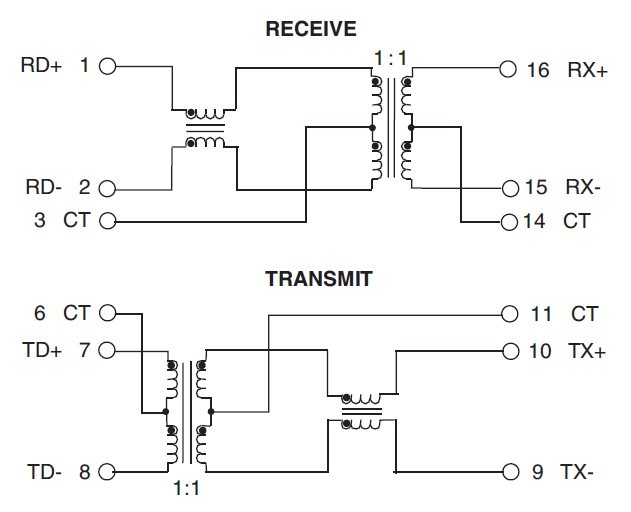

H0013NLT circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
H0013NLT
H0013NLT

Pulse

Transformers Audio & Signal MINI-PCI SGL

Data Sheet

0-600: $2.09
600-1000: $2.05
1000-2500: $1.99
